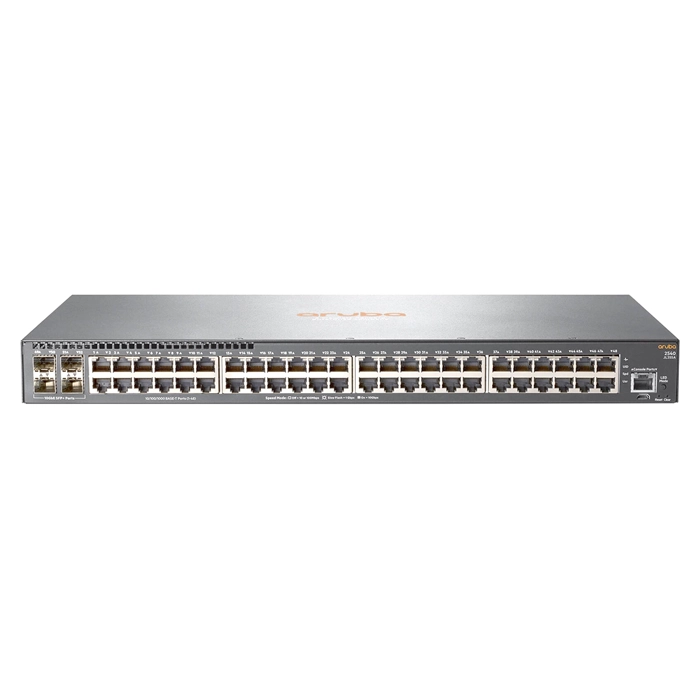

HP JL355A#B2E | Aruba 2540 Series 2540 48G 4SFP+ 48 x RJ-45 10/100/1000Base-T and 4 x SFP+ Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL355A#B2E
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$2,183.24
$2,052.25
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL355A#B2E | Aruba 2540 Series 2540 48G 4SFP+ 48 x RJ-45 10/100/1000Base-T and 4 x SFP+ Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2540 48G 4SFP+ (JL355A#B2E) is built to handle organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links without drama. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. It also adds SFP+ expansion for uplinks. Firmware and configuration live in onboard non-volatile memory, surviving reboots and power cycles. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air side-to-side airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect stocks the HP Aruba 2540 48G 4SFP+ as genuine, warranty-covered hardware, with fast delivery across the US.
  • UPC: 190017094359
Technical Documents:
General Information:
Product Line 2540
Model 2540 48G 4SFP+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 52
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Side-to-Side AirFlow
Height 1.73 Inches
Width 17.42 Inches
Depth 9.7 Inches
Weight 6.83 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1,000 MB Latency: < 3.8 µs (64-byte packets)
  • 10 Gbps Latency: < 1.6 µs (64-byte packets)
  • Throughput: up to 112.0 Mpps
  • Switching capacity: 176 Gbps
  • Routing table size: 2,000 entries (IPv4), 1,000 entries (IPv6)
  • MAC address table size: 16,384 entries
