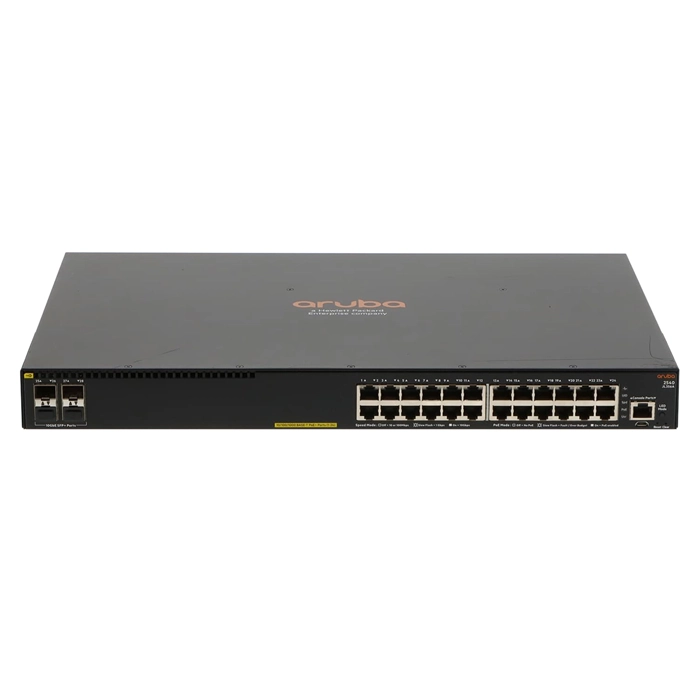

HP JL356A#AKL | Aruba 2540 Series 2540 24G PoE+ 4SFP+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP+ Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL356A#AKL
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$3,860.02
$3,628.42
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL356A#AKL | Aruba 2540 Series 2540 24G PoE+ 4SFP+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP+ Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2540 24G PoE+ 4SFP+ (JL356A#AKL) is built to handle large offices consolidating dozens of PoE endpoints onto fewer switches without drama. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. It brings 28 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. It rounds this out with SFP+ expansion for uplinks. Configuration persists in onboard memory through reboots and power cycles, no separate storage needed. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses side-to-side airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. When you order the HP Aruba 2540 24G PoE+ 4SFP+ through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
Product Line 2540
Model 2540 24G PoE+ 4SFP+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet PoE+, RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Side-to-Side AirFlow
Height 1.73 Inches
Width 17.42 Inches
Depth 11.98 Inches
Weight 8.6 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1,000 MB Latency: < 3.8 µs (64-byte packets)
  • 10 Gbps Latency: < 1.6 µs (64-byte packets)
  • Throughput: up to 95.2 Mpps
  • Switching capacity: 128 Gbps
  • Routing table size: 2,000 entries (IPv4), 1,000 entries (IPv6)
  • MAC address table size: 16,384 entries
