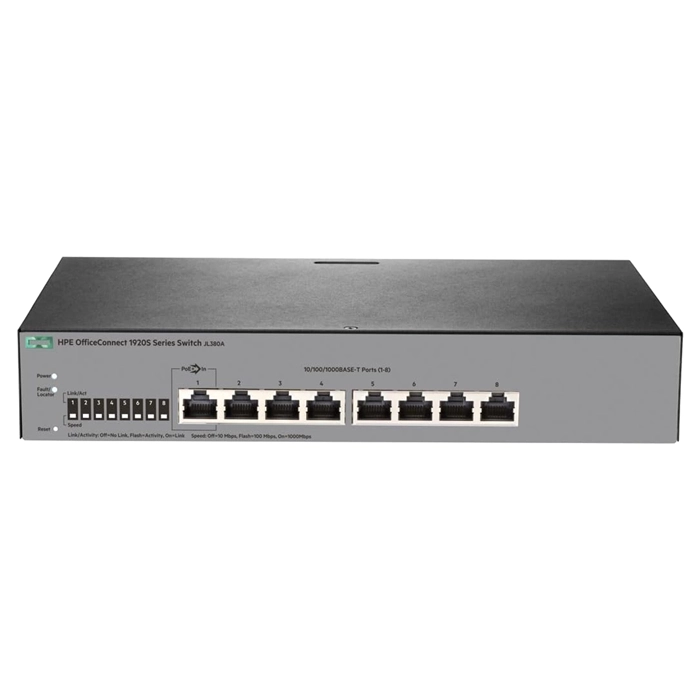

HP JL380A#B8X | OfficeConnect 1920S Series 1920S-8G 8 x 10/100/1000Base-T RJ-45 Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JL380A#B8X
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$282.78
$265.81
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL380A#B8X | OfficeConnect 1920S Series 1920S-8G 8 x 10/100/1000Base-T RJ-45 Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1920S-8G (JL380A#B8X) shows up a lot in shortlists for home offices and small businesses that just need reliable plug-and-play connectivity, and for good reason. It's well suited to growing offices and branch sites that need managed features - VLANs, QoS, basic monitoring - without the cost or complexity of a full data-center switch. It brings 8 total network ports, laid out as 8xGigabit EthernetRJ-45, topping out at Gigabit (1GbE) per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Beyond the base ports, there's a fixed-port design that keeps configuration simple. Onboard flash storage of 64 (MB) keeps firmware and config backups local to the switch. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, twisted pair media keeps it compatible with existing cabling. GotoDirect sources this HP OfficeConnect switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1920S
Model 1920S-8G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 8 x Gigabit Ethernet RJ-45
Total Number of Network Ports 8
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Media Standard Twisted Pair
Manageable Yes
Layer Supported 3
Flash Storage Memory 64 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 10 Inches
Depth 6.28 Inches
Weight 1.81 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 7µs
  • 1000 Mb Latency: < 2.4µs
  • Throughput: Up to 11.9 Mpps (64-byte packets)
  • Routing/Switching capacity: 16 Gbps
  • Routing table size: 32 entries
  • MAC address table size: 8000 entries
