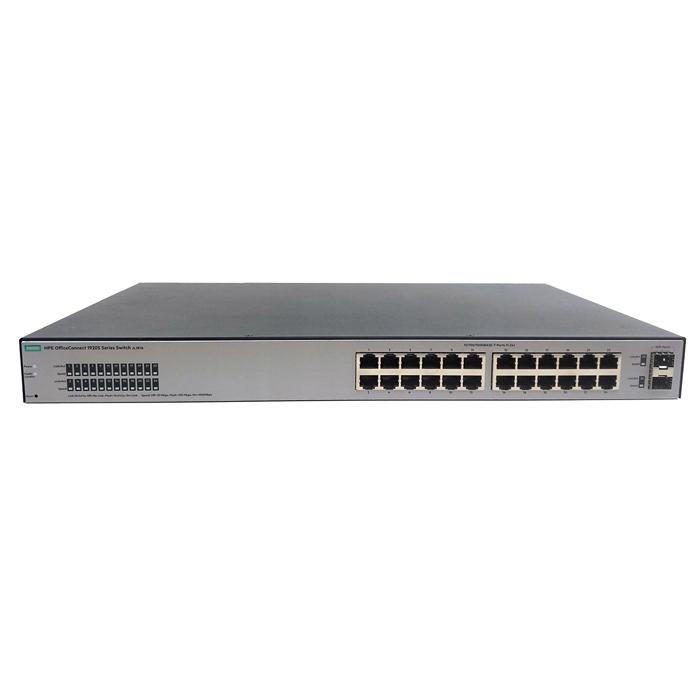

HP JL381A#ACF | OfficeConnect 1920S Series 1920S-24G-2SFP 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JL381A#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$238.61
$224.29
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL381A#ACF | OfficeConnect 1920S Series 1920S-24G-2SFP 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1920S-24G-2SFP (JL381A#ACF) shows up a lot in shortlists for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links, and for good reason. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 26 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. A built-in 64 (MB) of flash storage holds firmware images and config backups on the switch itself. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. When you order the HP OfficeConnect 1920S-24G-2SFP through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1920S
Model 1920S-24G-2SFP
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC)
Total Number of Network Ports 26
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Flash Storage Memory 64 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 9.69 Inches
Weight 6 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 7µs
  • 1000 Mb Latency: < 2µs
  • Throughput: Up to 38.6 Mpps (64-byte packets)
  • Routing/Switching capacity: 52 Gbps
  • Routing table size: 32 entries
  • MAC address table size: 8000 entries
