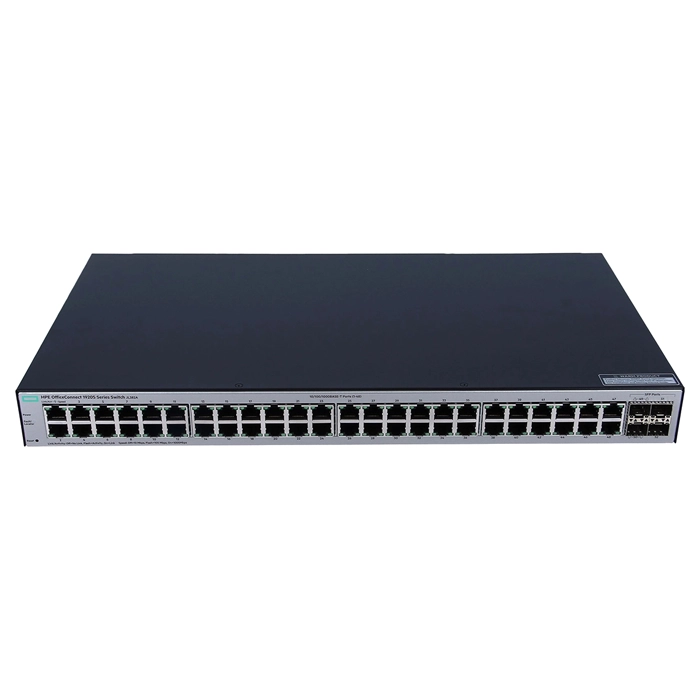

HP JL382A#AKM | OfficeConnect 1920S Series 1920S-48G-4SFP 48 x 10/100/1000Base-T RJ-45 and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JL382A#AKM
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$368.66
$346.54
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL382A#AKM | OfficeConnect 1920S Series 1920S-48G-4SFP 48 x 10/100/1000Base-T RJ-45 and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1920S-48G-4SFP (JL382A#AKM) is a solid pick for IT teams building out server, NAS and storage backbones that don't want to overthink the network layer. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. It rounds this out with SFP (mini-GBIC) expansion for uplinks. Onboard flash storage of 64 (MB) keeps firmware and config backups local to the switch. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect ships this HP OfficeConnect switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line OfficeConnect 1920S
Model 1920S-48G-4SFP
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC)
Total Number of Network Ports 52
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Flash Storage Memory 64 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 9.69 Inches
Weight 7.3 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 7µs
  • 1000 Mb Latency: < 2µs
  • Throughput: Up to 77.3 Mpps (64-byte packets)
  • Routing/Switching capacity: 104 Gbps
  • Routing table size: 32 entries
  • MAC address table size: 16000 entries
