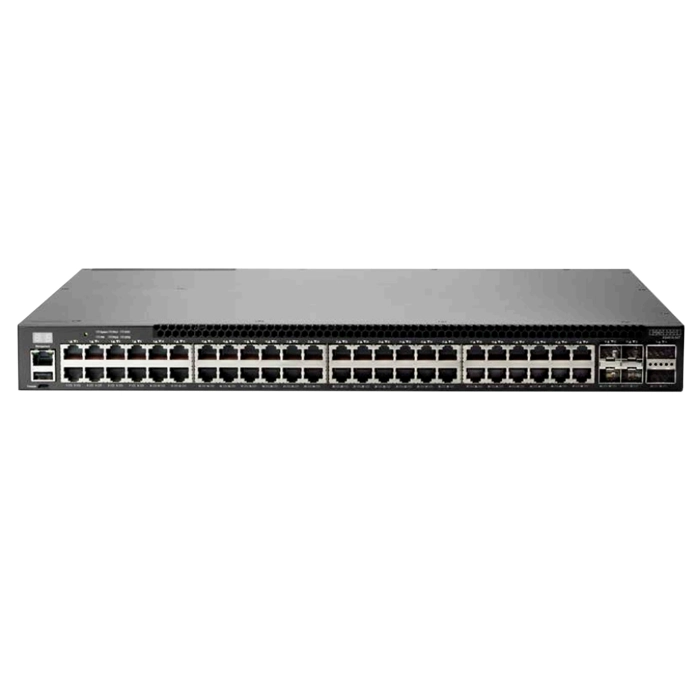

HP JL475A | Altoline 6900 Series 6900 48G 4XG 2QSFP 48 x 1GbE RJ-45 and 4 x 10GbE SFP+ and 2 x 40GbE QSFP+ Ports ARM ONIE AC Layer 3 Managed Switch

Part No JL475A
Manufacturer HP
Condition Refurbished
Availability Call For Price
Call For Price

Speak with our team for current pricing and availability.

Call Now +1 (888) 203 - 4073
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL475A | Altoline 6900 Series 6900 48G 4XG 2QSFP 48 x 1GbE RJ-45 and 4 x 10GbE SFP+ and 2 x 40GbE QSFP+ Ports ARM ONIE AC Layer 3 Managed Switch
  • HP Altoline 6900 48G 4XG 2QSFP (JL475A) makes sense if you're shopping for teams scaling out AI/ML training clusters that need fast east-west links. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 54 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink and 2x40 Gigabit EthernetQSFP+,Stacking, topping out at 40GbE per port. On top of that, it has SFP+,QSFP+ expansion for uplinks and stacking so multiple units run as one logical switch. With 8 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and standard front-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+,QSFP+ covers both copper and fiber runs. Buy the HP Altoline 6900 48G 4XG 2QSFP from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line Altoline 6900
Model 6900 48G 4XG 2QSFP
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink
  • 2 x 40 Gigabit Ethernet QSFP+, Stacking
Total Number of Network Ports 54
Number of Expansion Slots 6
Expansion Slots Details
  • SFP+
  • QSFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
  • 40 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
  • 40GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Stacking Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.32 Inches
Depth 16.1 Inches
Weight 5.38 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 40 Gbps Latency: > .6 µs
  • Switching capacity: 128 Gbps
  • Routing table size: 12000 entries (IPv4), 6000 entries (IPv6)
  • MAC address table size: 176000 entries
