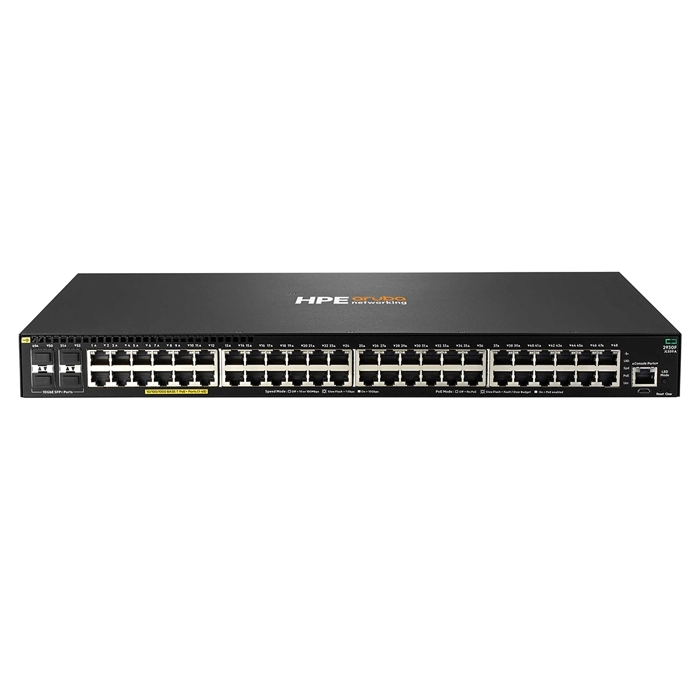

HP JL559A#ACF | Aruba 2930F Series 2930F 48G PoE+ 4SFP+ 740W 48 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch TAA-Compliant

Part No JL559A#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$15,368.32
$14,753.59
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL559A#ACF | Aruba 2930F Series 2930F 48G PoE+ 4SFP+ 740W 48 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch TAA-Compliant
  • HP Aruba 2930F 48G PoE+ 4SFP+ 740W (JL559A#ACF) shows up a lot in shortlists for growing offices that need to power dozens of endpoints straight from the switch, and for good reason. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+, topping out at 10GbE per port. Beyond the base ports, there's SFP+ expansion for uplinks. Configuration persists in onboard memory through reboots and power cycles, no separate storage needed. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and side-to-side airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect stocks the HP Aruba 2930F 48G PoE+ 4SFP+ 740W as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
Product Line 2930F
Model 2930F 48G PoE+ 4SFP+ 740W
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet PoE+, RJ-45
  • 4 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 52
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Side-to-Side AirFlow
Height 1.73 Inches
Width 17.42 Inches
Depth 12.77 Inches
Weight 10.56 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
  • TAA
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 1,000 Mb Latency: < 3.8 μs (64-byte packets)
  • 10 Gbps Latency: < 2.9 μs (64-byte packets)
  • Throughput: up to 112.0 Mpps
  • Switching capacity: 176 Gbps
  • Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
  • MAC address table size: 32,768 entries
