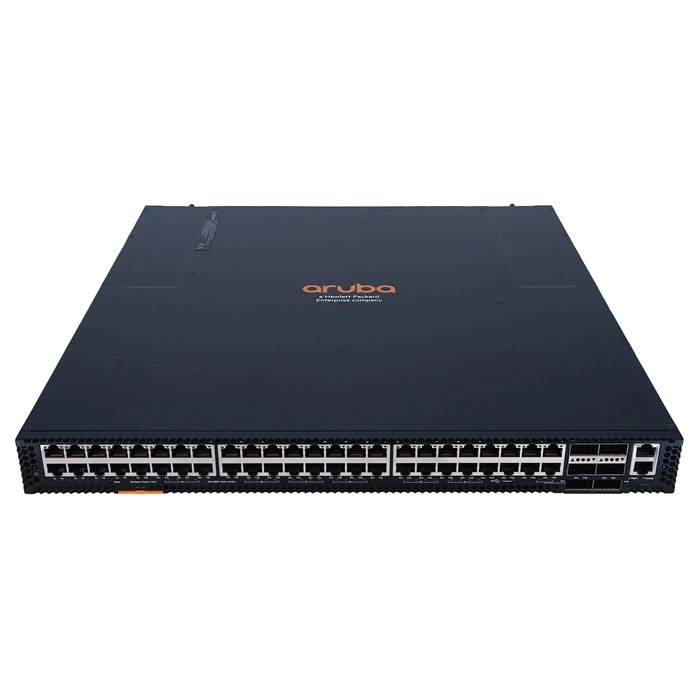

HP JL581A#ABG | Aruba Networking CX 8320 Series 8320-48p 48 x 10GBase‑T RJ-45 and 6 x 40GbE QSFP+ Ports with X472 2-post Rack Kit 5 x Fans 2 x Power Supply Switch Bundle
$20,042.47
$19,240.77Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL581A#ABG | Aruba Networking CX 8320 Series 8320-48p 48 x 10GBase‑T RJ-45 and 6 x 40GbE QSFP+ Ports with X472 2-post Rack Kit 5 x Fans 2 x Power Supply Switch Bundle
- HP Aruba 8320-48p (JL581A#ABG) is a solid pick for media and rendering studios moving large files between workstations and storage that don't want to overthink the network layer. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 54 total network ports, laid out as 48x10 Gigabit EthernetRJ-45 and 6x40 Gigabit EthernetQSFP+, topping out at 40GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It also adds QSFP+ expansion for uplinks. With 8 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. On the compatibility side, it's rack-mount, in a 2U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over QSFP+ covers both copper and fiber runs. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
| Product Line | CX 8320 |
|---|---|
| Model | 8320-48p |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 54 |
| Number of Expansion Slots | 6 |
| Expansion Slots Details | QSFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 8 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 2U |
| Height | 1.71 Inches |
| Width | 18.6 Inches |
| Depth | 17.4 Inches |
| Weight | 20.94 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
