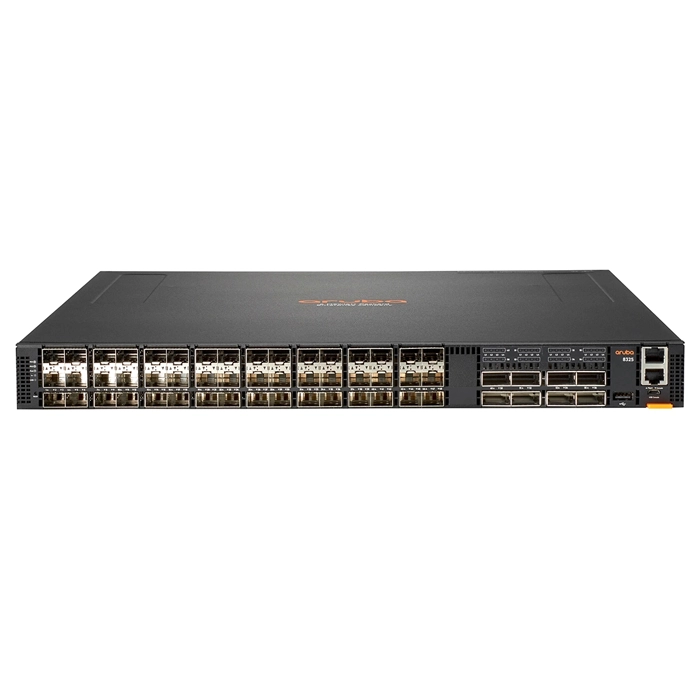

HP JL624A#ACD | Aruba CX 8325 Series 8325-48Y8C 48 x 25GbE SFP28 and 8 x 100GbE QSFP28 Layer 3 Managed Front-to-Back Airflow Network Switch

Part No JL624A#ACD
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$10,560.61
$10,138.19
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL624A#ACD | Aruba CX 8325 Series 8325-48Y8C 48 x 25GbE SFP28 and 8 x 100GbE QSFP28 Layer 3 Managed Front-to-Back Airflow Network Switch
  • HP Aruba CX 8325-48Y8C (JL624A#ACD) is a solid pick for network cores and aggregation layers feeding busy server racks that don't want to overthink the network layer. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 56 total network ports, laid out as 48x25 Gigabit EthernetSFP28 and 8x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On top of that, it has QSFP28,SFP28 expansion for uplinks. Onboard flash storage of 8 (GB) keeps firmware and config backups local to the switch. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-to-rear airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. When you order the HP Aruba CX 8325-48Y8C through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
General Information:
Product Line CX 8325
Model 8325-48Y8C
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x 25 Gigabit Ethernet SFP28
  • 8 x 100 Gigabit Ethernet QSFP28
Total Number of Network Ports 56
Number of Expansion Slots 56
Expansion Slots Details
  • QSFP28
  • SFP28
Modular Expansion Yes
Ethernet Technology
  • 25 Gigabit Ethernet
  • 100 Gigabit Ethernet
Network Technology
  • 100GBase-X
  • 25GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.71 Inches
Width 17.26 Inches
Depth 21.1 Inches
Weight 10 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • CPU: 2.2GHz
  • Memory, Drive and Flash: 16GB RAM, 64GB SSD, 8GB Flash Packet Buffer: 32MB
  • Switching Capacity: 6.4Tbps
  • IPv4 Host Table: 120,000
  • IPv6 Host Table: 52,000
  • IPv4 Unicast Routes: 131,072
  • IPv6 Unicast Routes: 32,732
  • MAC Table Size: 98,304
  • IGMP Groups: 4,094
  • MLD Groups: 4,094
  • IPv4 Multicast Routes: 4,094
  • IPv6 Multicast Routes: 4,094
