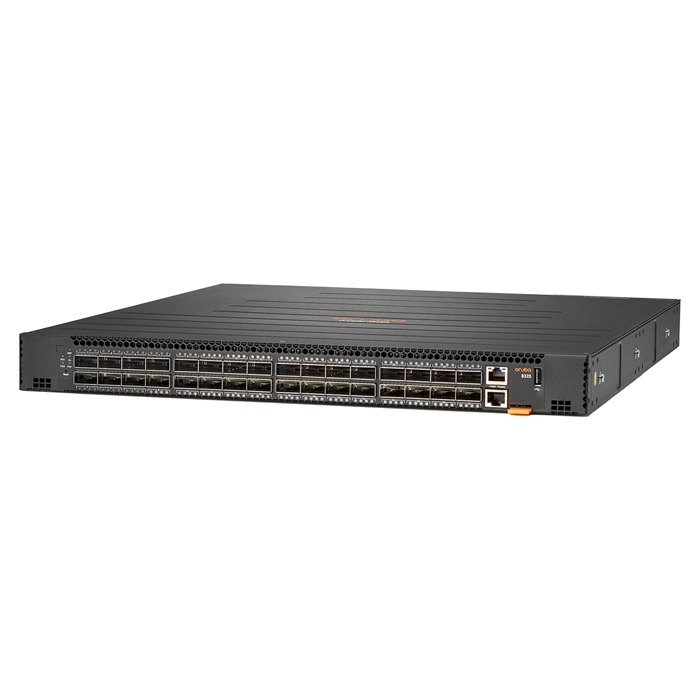

HP JL626AR#ABA | Aruba CX 8325 Series 8325-32C 32 x 100GbE QSFPP28 Layer 3 Managed Front-to-Back Airflow Network Switch

Part No JL626AR#ABA
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$10,687.50
$10,260.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL626AR#ABA | Aruba CX 8325 Series 8325-32C 32 x 100GbE QSFPP28 Layer 3 Managed Front-to-Back Airflow Network Switch
  • HP Aruba CX 8325-32C (JL626AR#ABA) is worth a close look if you're setting up or upgrading a network for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. It brings 32 total network ports, laid out as 32x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It rounds this out with QSFP28 expansion for uplinks. Onboard flash storage of 8 (GB) keeps firmware and config backups local to the switch. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-to-rear airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28 covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 8325-32C as genuine, warranty-covered hardware, with fast delivery across the US.
General Information:
Product Line CX 8325
Model 8325-32C
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 32 x 100 Gigabit Ethernet QSFP28
Total Number of Network Ports 32
Number of Expansion Slots 32
Expansion Slots Details QSFP28
Modular Expansion Yes
Ethernet Technology 100 Gigabit Ethernet
Network Technology
  • 100GBase-X
  • 25GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.71 Inches
Width 17.42 Inches
Depth 18.62 Inches
Weight 10.87 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • CPU: 2.2GHz
  • Memory, Drive and Flash: 16GB RAM, 64GB SSD, 8GB Flash Packet Buffer: 32MB
  • Switching Capacity: 6.4Tbps
  • IPv4 Host Table: 120,000
  • IPv6 Host Table: 52,000
  • IPv4 Unicast Routes: 131,072
  • IPv6 Unicast Routes: 32,732
  • MAC Table Size: 98,304
  • IGMP Groups: 4,094
  • MLD Groups: 4,094
  • IPv4 Multicast Routes: 4,094
  • IPv6 Multicast Routes: 4,094
