Image may differ from original

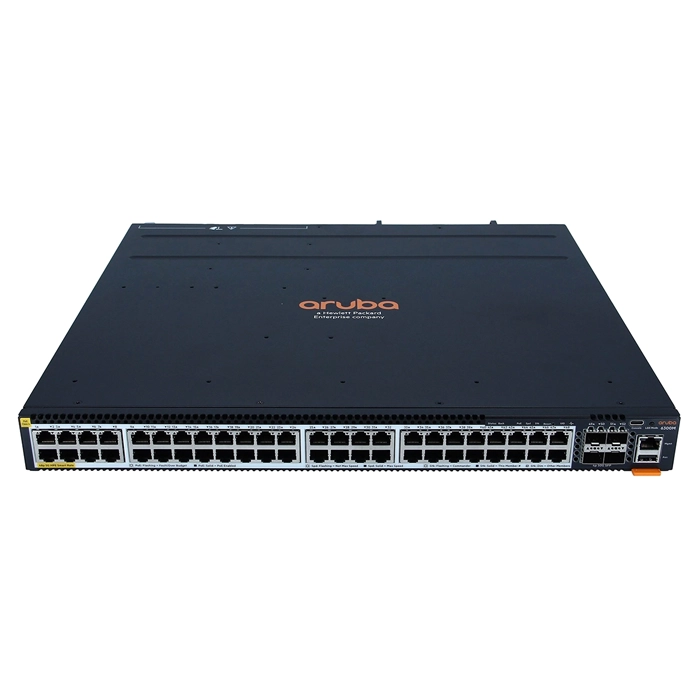

HP JL659A#OD1 | Aruba CX 6300M Series 48 x 5GBase-T RJ-45 Class6 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$16,703.79
$16,035.64Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL659A#OD1 | Aruba CX 6300M Series 48 x 5GBase-T RJ-45 Class6 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 (JL659A#OD1) is the switch IT teams supporting growing offices that need to power dozens of endpoints straight from the switch often turn to when they need something that just works. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Port-wise, it offers 52 total network ports, laid out as 48x5 Gigabit EthernetRJ-45,Class6 PoE and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. It also adds SFP56 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. PoE support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air front-and-side-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP56 covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
| Product Line | CX 6300M |
|---|---|
| Model | 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 15.2 Inches |
| Weight | 6.71 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
