Image may differ from original

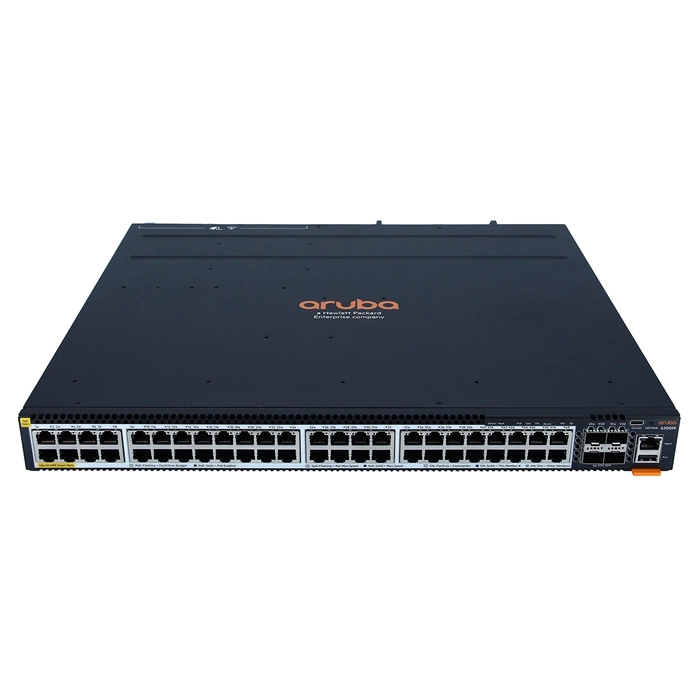

HP JL661A#OD1 | Aruba CX 6300M Series 48 x 1000Base-T RJ-45 Class4 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$6,828.69
$6,418.97Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL661A#OD1 | Aruba CX 6300M Series 48 x 1000Base-T RJ-45 Class4 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 (JL661A#OD1) is a solid pick for campus networks and multi-floor offices with dense wireless AP and VoIP deployments that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetRJ-45,Class4 PoE and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with SFP56 expansion for uplinks. A built-in 32 (GB) of flash storage holds firmware images and config backups on the switch itself. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses front-and-side-to-back airflow to match common data-center airflow layouts. GotoDirect stocks the HP Aruba CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 6300M |
|---|---|
| Model | 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 15.2 Inches |
| Weight | 5.72 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
