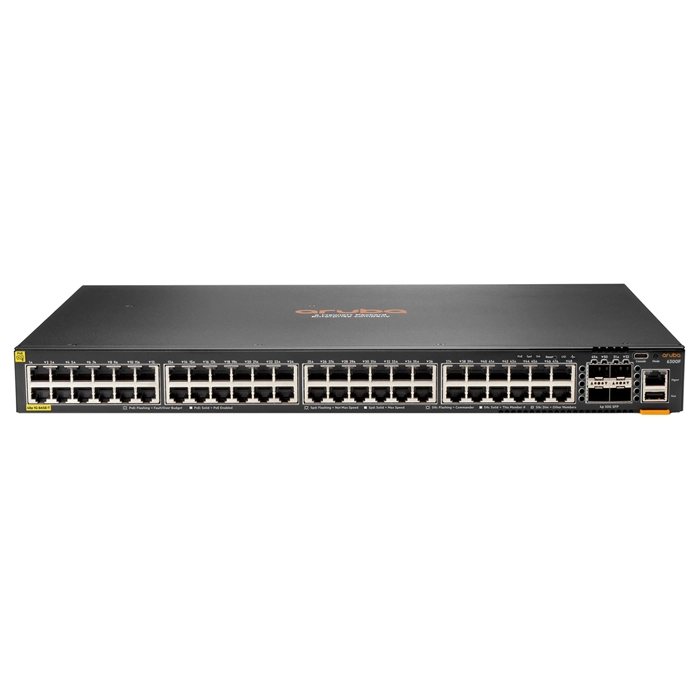

HP JL665A#0D1 | Aruba CX 6300F Series 48 x 1000Base-T RJ-45 Class4 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$6,083.54
$5,901.03Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL665A#0D1 | Aruba CX 6300F Series 48 x 1000Base-T RJ-45 Class4 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 (JL665A#0D1) is built to handle enterprises rolling out PoE access points, IP cameras and phones across large floors without drama. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 52 total network ports, laid out as 48xGigabit EthernetRJ-45,Class4 PoE and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. It also adds SFP56 expansion for uplinks. With 32 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Built-in PoE power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-and-side-to-back airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP56 covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
| Product Line | CX 6300F |
|---|---|
| Model | 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 5.10 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
