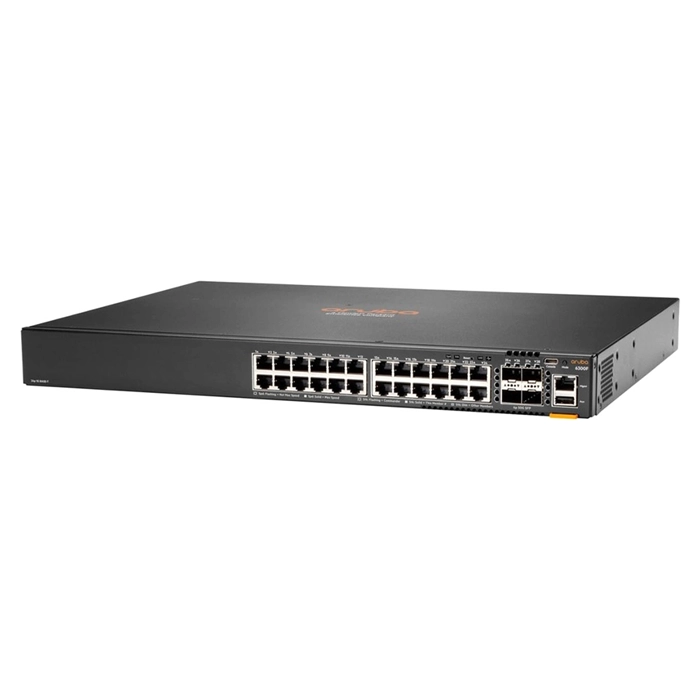

HP JL668A#ACC | Aruba CX 6300F Series 24 x 1000Base-T RJ-45 and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$902.62
$848.46Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL668A#ACC | Aruba CX 6300F Series 24 x 1000Base-T RJ-45 and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A#ACC) is a strong, no-nonsense fit for large offices consolidating dozens of PoE endpoints onto fewer switches. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. Wiring is handled by 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. It rounds this out with SFP56 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP56 covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 6300F 24-port 1GbE and 4-port SFP56 Switch as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 6300F |
|---|---|
| Model | 6300F 24-port 1GbE and 4-port SFP56 Switch |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 4.36 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
