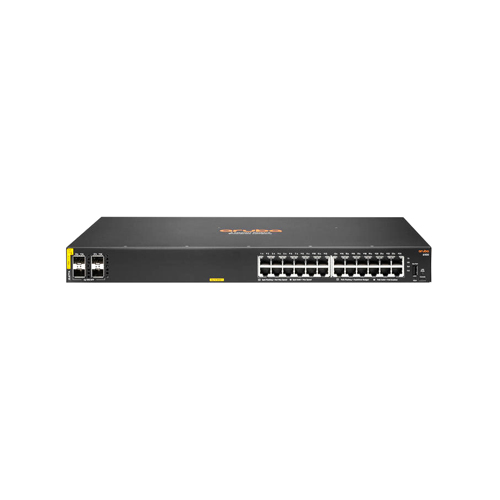

HP JL677A-RNG | Aruba CX 6100 Series 6100 24G Class4 PoE 4SFP+ 370W 24 x 1000Base-T RJ-45 Class 4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$1,536.06
$1,459.26Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL677A-RNG | Aruba CX 6100 Series 6100 24G Class4 PoE 4SFP+ 370W 24 x 1000Base-T RJ-45 Class 4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba CX 6100 24G Class4 PoE 4SFP+ 370W (JL677A-RNG) shows up a lot in shortlists for enterprises rolling out PoE access points, IP cameras and phones across large floors, and for good reason. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. On the port side, you get 28 total network ports, laid out as 24xGigabit EthernetRJ-45,Class4 PoE and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. On top of that, it has SFP+ expansion for uplinks. With 16 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. PoE support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air side-to-side airflow for straightforward rack cooling. When you order the HP Aruba CX 6100 24G Class4 PoE 4SFP+ 370W through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 6100 |
|---|---|
| Model | 6100 24G Class4 PoE 4SFP+ 370W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Side-to-Side AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 10.56 Inches |
| Weight | 4.19 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
