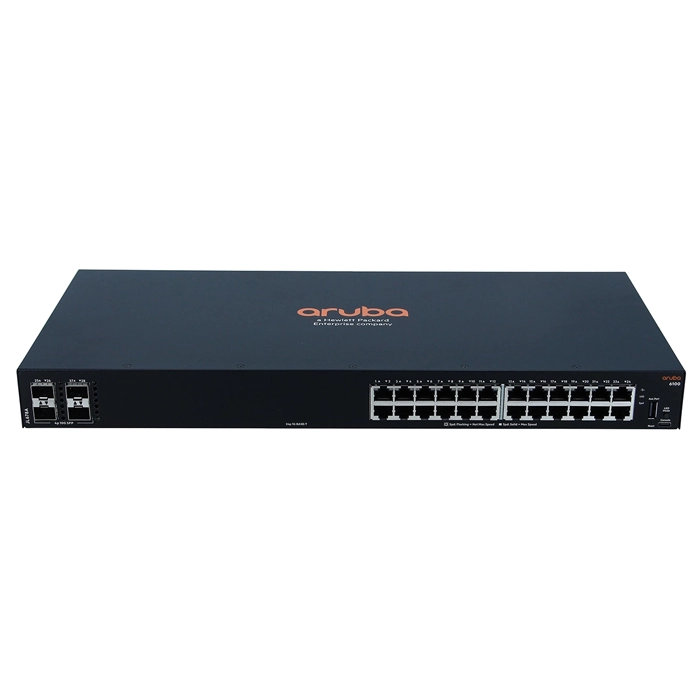

HP JL678-61021 | Aruba CX 6100 Series 6100 24G 4SFP+ 24 x 1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JL678-61021
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,921.89
$1,806.58
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL678-61021 | Aruba CX 6100 Series 6100 24G 4SFP+ 24 x 1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba CX 6100 24G 4SFP+ (JL678-61021) is worth a close look if you're setting up or upgrading a network for network cores and aggregation layers feeding busy server racks. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On top of that, it has SFP+ expansion for uplinks. Onboard flash storage of 16 (GB) keeps firmware and config backups local to the switch. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air side-to-side airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. Buy the HP Aruba CX 6100 24G 4SFP+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line CX 6100
Model 6100 24G 4SFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 16 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Side-to-Side AirFlow
Height 1.73 Inches
Width 17.4 Inches
Depth 7.92 Inches
Weight 2.62 kg
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Packet buffer: 12.38 MB
  • Model switching capacity: 128 Gbps
  • Model throughput capacity: 95.2 Mpps
  • Average latency (LIFO‑64-bytes packets): 1 Gbps: 1.9μSec, 10 Gbps: 1.8μSec
  • Switched virtual interfaces (dual stack): 16
  • IPv4 host table (ARP): 1,024
  • IPv6 host table (ND): 512
  • IPv4 unicast routes: 512
  • IPv6 unicast routes: 512
