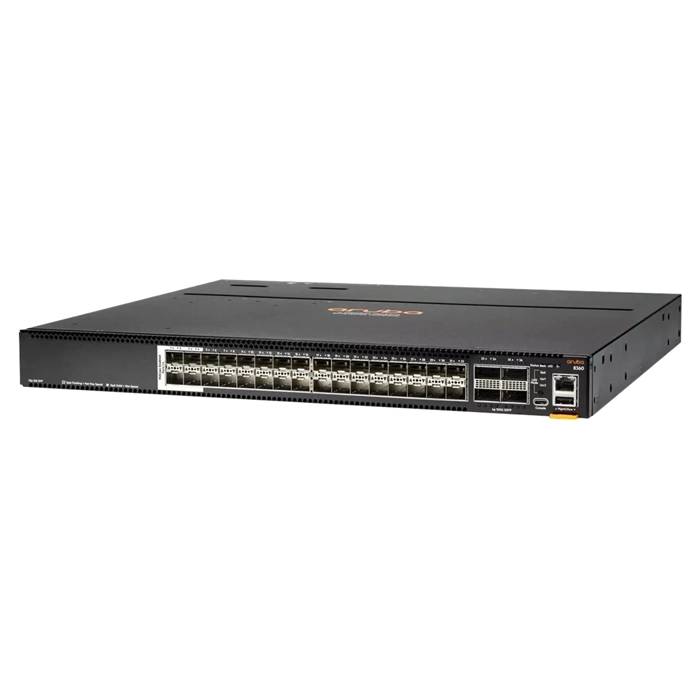

HP JL700AR | Aruba CX 8360 v2 Series 8360-32Y4C v2 32 x 25GBase-X SFP28 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch
$13,309.58
$11,845.53Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL700AR | Aruba CX 8360 v2 Series 8360-32Y4C v2 32 x 25GBase-X SFP28 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch
- HP Aruba CX 8360-32Y4C v2 (JL700AR) is built to handle media and rendering studios moving large files between workstations and storage without drama. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 36 total network ports, laid out as 32x25 Gigabit EthernetSFP28 and 4x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Beyond the base ports, there's QSFP28,SFP28 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-to-rear airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. When you order the HP Aruba CX 8360-32Y4C v2 through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 8360 v2 |
|---|---|
| Model | 8360-32Y4C v2 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 36 |
| Number of Expansion Slots | 36 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-to-Rear AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 16.0 Inches |
| Weight | 18.05 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
