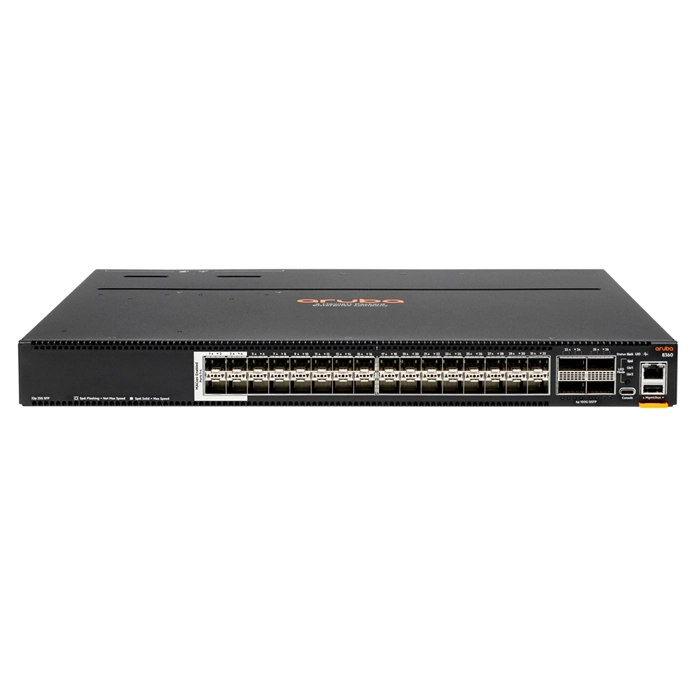

HP JL701A | Aruba CX 8360 v2 Series 8360-32Y4C v2 32 x 25GBase-X SFP28 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch

Part No JL701A
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$46,181.46
$44,334.20
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL701A | Aruba CX 8360 v2 Series 8360-32Y4C v2 32 x 25GBase-X SFP28 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
  • HP Aruba CX 8360-32Y4C v2 (JL701A) is the switch IT teams supporting organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links often turn to when they need something that just works. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. It brings 36 total network ports, laid out as 32x25 Gigabit EthernetSFP28 and 4x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Beyond the base ports, there's QSFP28,SFP28 expansion for uplinks. A built-in 32 (GB) of flash storage holds firmware images and config backups on the switch itself. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air rear-to-front airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. When you order the HP Aruba CX 8360-32Y4C v2 through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
General Information:
Product Line CX 8360 v2
Model 8360-32Y4C v2
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 32 x 25 Gigabit Ethernet SFP28
  • 4 x 100 Gigabit Ethernet QSFP28
Total Number of Network Ports 36
Number of Expansion Slots 36
Expansion Slots Details
  • QSFP28
  • SFP28
Modular Expansion Yes
Ethernet Technology
  • 25 Gigabit Ethernet
  • 100 Gigabit Ethernet
Network Technology
  • 100GBase-X
  • 25GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 32 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Rear-to-Front AirFlow
Height 1.73 Inches
Width 17.4 Inches
Depth 16.0 Inches
Weight 18.05 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Switching capacity: 2.4 Tbps
  • MAC address: 212,992
  • IPv4 host table: 145,780
  • IPv6 host table: 145,780
  • IPv4 unicast routes: 606,977
  • IPv6 unicast routes: 630,784
  • Maximum number of Access Control List (ACL) entries ingress: IPv4 64,000, IPv6 32,764, MAC 64,000
  • Maximum number of Access Control List (ACL) entries egress: IPv4 8,192, IPv6 2,048, MAC 8,192
  • Maximum VLANs: 4,094
  • IGMP groups: 7,000
  • MLD groups: 7,000
  • IPv4 multicast routes: 7,000
  • IPv6 multicast routes: 7,000
