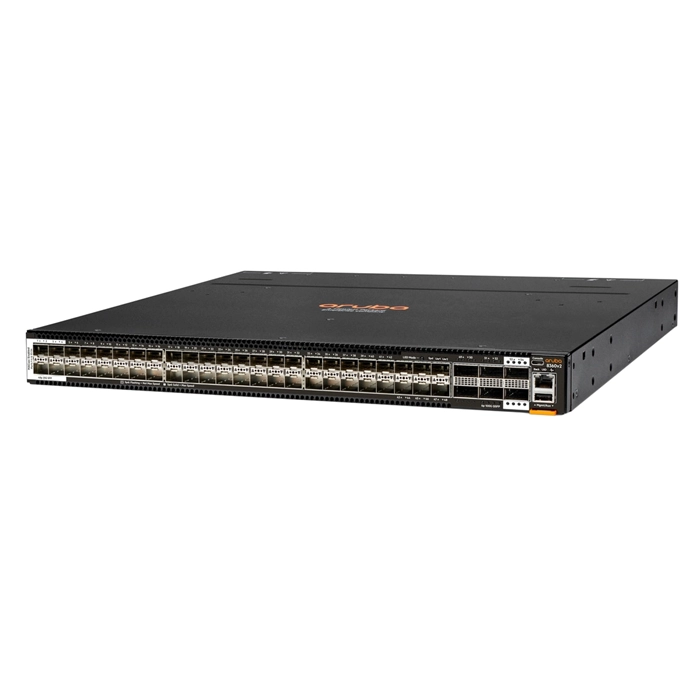

HP JL705C | Aruba CX 8360 v2 Series 8360-48Y6C v2 48 x 25GBase-X SFP28 and 6 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch

Part No JL705C
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$16,853.98
$15,842.74
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL705C | Aruba CX 8360 v2 Series 8360-48Y6C v2 48 x 25GBase-X SFP28 and 6 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
  • HP Aruba CX 8360-48Y6C v2 (JL705C) is a solid pick for teams scaling out AI/ML training clusters that need fast east-west links that don't want to overthink the network layer. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 54 total network ports, laid out as 48x25 Gigabit EthernetSFP28 and 6x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with QSFP28,SFP28 expansion for uplinks. With 32 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air rear-to-front airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. Buy the HP Aruba CX 8360-48Y6C v2 from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line CX 8360 v2
Model 8360-48Y6C v2
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x 25 Gigabit Ethernet SFP28
  • 6 x 100 Gigabit Ethernet QSFP28
Total Number of Network Ports 54
Number of Expansion Slots 54
Expansion Slots Details
  • QSFP28
  • SFP28
Modular Expansion Yes
Ethernet Technology
  • 25 Gigabit Ethernet
  • 100 Gigabit Ethernet
Network Technology
  • 100GBase-X
  • 25GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 32 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Rear-to-Front AirFlow
Height 1.73 Inches
Width 17.4 Inches
Depth 20.0 Inches
Weight 23.65 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Switching capacity: 4.8 Tbps
  • MAC address: 212,992
  • IPv4 host table: 145,780
  • IPv6 host table: 145,780
  • IPv4 unicast routes: 606,977
  • IPv6 unicast routes: 630,784
  • Maximum number of Access Control List (ACL) entries ingress: IPv4 64,000, IPv6 32,764, MAC 64,000
  • Maximum number of Access Control List (ACL) entries egress: IPv4 8,192, IPv6 2,048, MAC 8,192
  • Maximum VLANs: 4,094
  • IGMP groups: 7,000
  • MLD groups: 7,000
  • IPv4 multicast routes: 7,000
  • IPv6 multicast routes: 7,000
