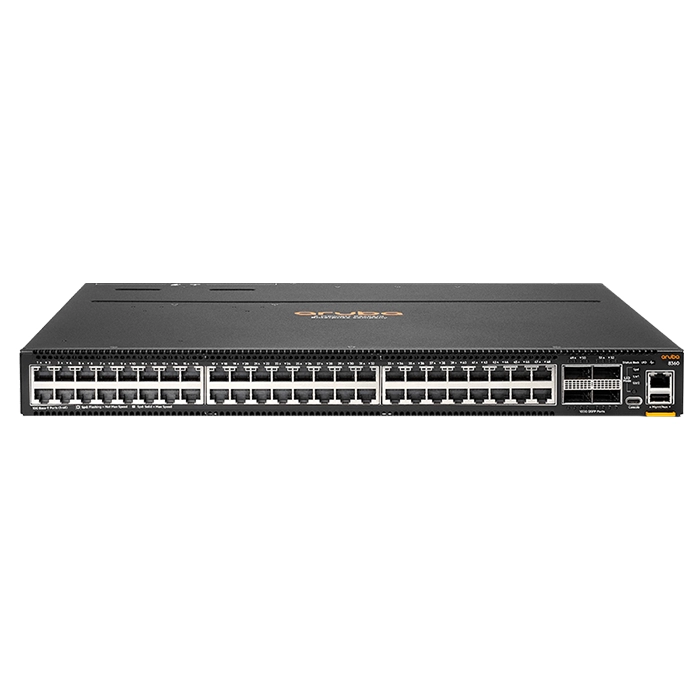

HP JL706A#AC3 | Aruba CX 8360 v2 Series 8360-48XT4C v2 48 x 10GBase-T RJ-45 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch
$30,837.69
$29,912.56Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL706A#AC3 | Aruba CX 8360 v2 Series 8360-48XT4C v2 48 x 10GBase-T RJ-45 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch
- HP Aruba CX 8360-48XT4C v2 (JL706A#AC3) is a solid pick for data centers, virtualization hosts and server rooms that need high east-west throughput that don't want to overthink the network layer. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 52 total network ports, laid out as 48x10 Gigabit EthernetRJ-45 and 4x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. On top of that, it has QSFP28,SFP28 expansion for uplinks. A built-in 32 (GB) of flash storage holds firmware images and config backups on the switch itself. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses front-to-rear airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 8360-48XT4C v2 as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 8360 v2 |
|---|---|
| Model | 8360-48XT4C v2 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-to-Rear AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 16.0 Inches |
| Weight | 18.85 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
