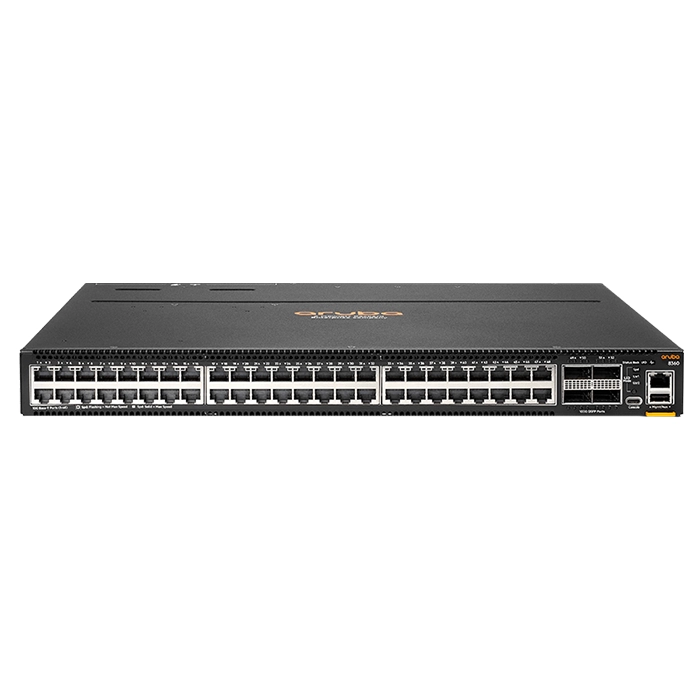

HP JL706A#ACD | Aruba CX 8360 v2 Series 8360-48XT4C v2 48 x 10GBase-T RJ-45 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch

Part No JL706A#ACD
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$30,837.69
$29,912.56
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL706A#ACD | Aruba CX 8360 v2 Series 8360-48XT4C v2 48 x 10GBase-T RJ-45 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch
  • HP Aruba CX 8360-48XT4C v2 (JL706A#ACD) makes sense if you're shopping for data centers, virtualization hosts and server rooms that need high east-west throughput. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 52 total network ports, laid out as 48x10 Gigabit EthernetRJ-45 and 4x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with QSFP28,SFP28 expansion for uplinks. With 32 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-to-rear airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 8360-48XT4C v2 as genuine, warranty-covered hardware, with fast delivery across the US.
General Information:
Product Line CX 8360 v2
Model 8360-48XT4C v2
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x 10 Gigabit Ethernet RJ-45
  • 4 x 100 Gigabit Ethernet QSFP28
Total Number of Network Ports 52
Number of Expansion Slots 4
Expansion Slots Details
  • QSFP28
  • SFP28
Modular Expansion Yes
Ethernet Technology
  • 10 Gigabit Ethernet
  • 100 Gigabit Ethernet
Network Technology
  • 100GBase-X
  • 10GBase-T
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 32 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.73 Inches
Width 17.4 Inches
Depth 16.0 Inches
Weight 18.85 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Switching capacity: 1.76 Tbps
  • MAC address: 212,992
  • IPv4 host table: 145,780
  • IPv6 host table: 145,780
  • IPv4 unicast routes: 606,977
  • IPv6 unicast routes: 630,784
  • Maximum number of Access Control List (ACL) entries ingress: IPv4 64,000, IPv6 32,764, MAC 64,000
  • Maximum number of Access Control List (ACL) entries egress: IPv4 8,192, IPv6 2,048, MAC 8,192
  • Maximum VLANs: 4,094
  • IGMP groups: 7,000
  • MLD groups: 7,000
  • IPv4 multicast routes: 7,000
  • IPv6 multicast routes: 7,000
