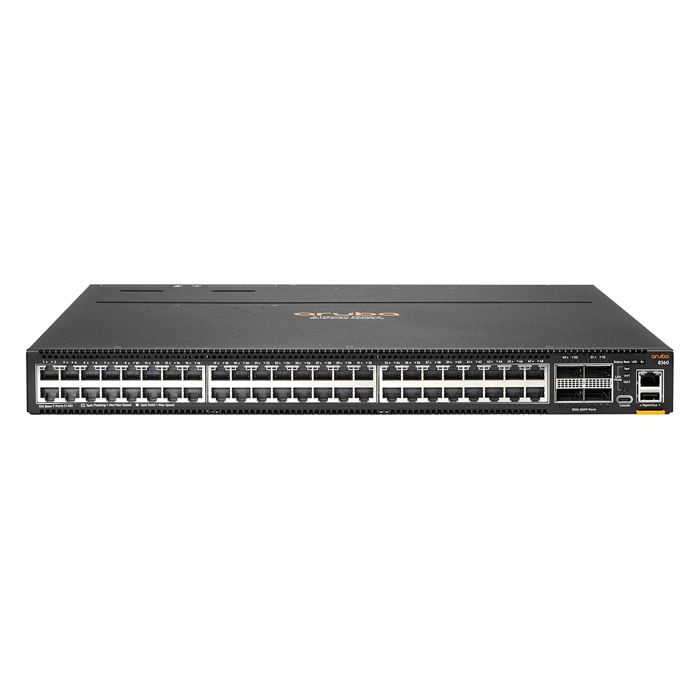

HP JL707A#ABG | Aruba CX 8360 v2 Series 8360-48XT4C v2 48 x 10GBase-T RJ-45 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
Description:
- HP JL707A#ABG | Aruba CX 8360 v2 Series 8360-48XT4C v2 48 x 10GBase-T RJ-45 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
- HP Aruba CX 8360-48XT4C v2 (JL707A#ABG) is the switch IT teams supporting organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links often turn to when they need something that just works. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 52 total network ports, laid out as 48x10 Gigabit EthernetRJ-45 and 4x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Beyond the base ports, there's QSFP28,SFP28 expansion for uplinks. With 32 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows rear-to-front airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
| Product Line | CX 8360 v2 |
|---|---|
| Model | 8360-48XT4C v2 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Rear-to-Front AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 16.0 Inches |
| Weight | 18.85 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
