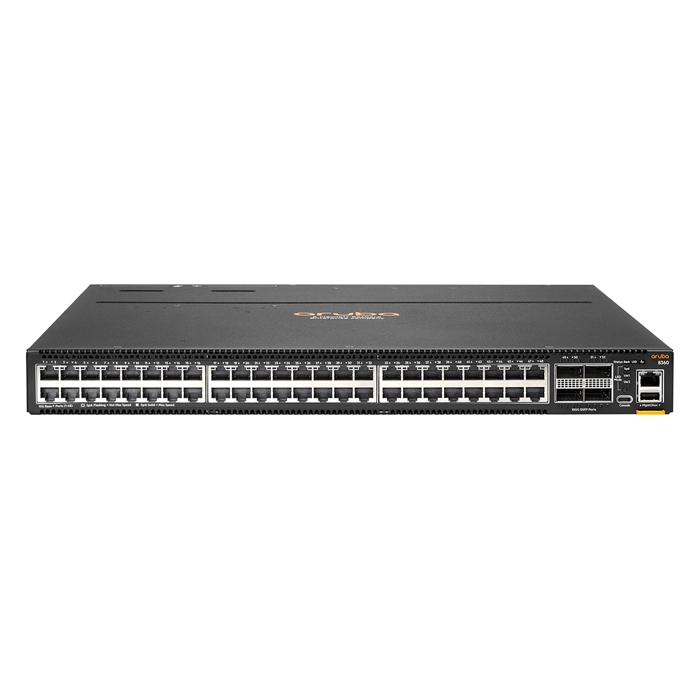

HP JL707C | Aruba CX 8360 v2 Series 8360-48XT4C v2 48 x 10GBase-T RJ-45 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
Description:
- HP JL707C | Aruba CX 8360 v2 Series 8360-48XT4C v2 48 x 10GBase-T RJ-45 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
- HP Aruba CX 8360-48XT4C v2 (JL707C) is a strong, no-nonsense fit for colocation and hosting environments packing dense server racks. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 52 total network ports, laid out as 48x10 Gigabit EthernetRJ-45 and 4x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. It also adds QSFP28,SFP28 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows rear-to-front airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. Buy the HP Aruba CX 8360-48XT4C v2 from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
| Product Line | CX 8360 v2 |
|---|---|
| Model | 8360-48XT4C v2 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Rear-to-Front AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 16.0 Inches |
| Weight | 18.85 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
