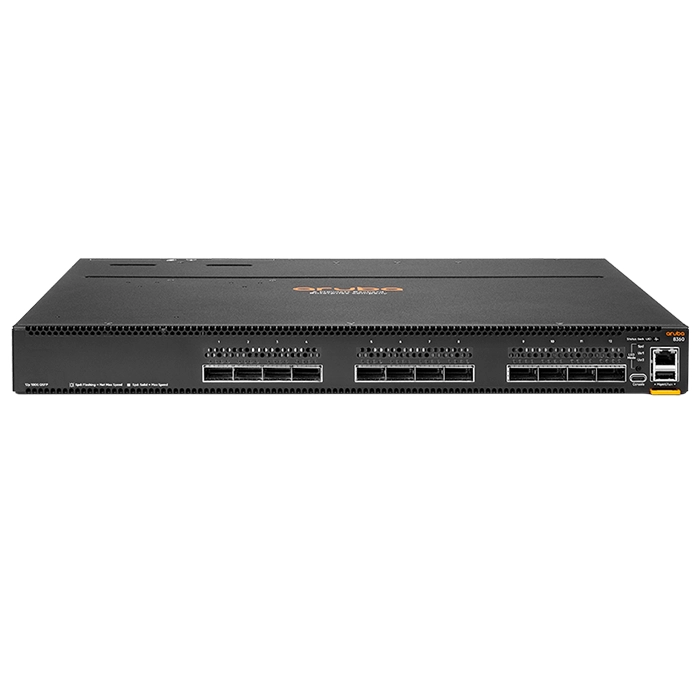

HP JL708C | Aruba CX 8360 v2 Series 8360-12C v2 12 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch

Part No JL708C
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$32,995.56
$31,675.73
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL708C | Aruba CX 8360 v2 Series 8360-12C v2 12 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch
  • HP Aruba CX 8360-12C v2 (JL708C) makes sense if you're shopping for network cores and aggregation layers feeding busy server racks. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 12 total network ports, laid out as 12x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It also adds QSFP28 expansion for uplinks. A built-in 32 (GB) of flash storage holds firmware images and config backups on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-to-rear airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28 covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 8360-12C v2 as genuine, warranty-covered hardware, with fast delivery across the US.
General Information:
Product Line CX 8360 v2
Model 8360-12C v2
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 12 x 100 Gigabit Ethernet QSFP28
Total Number of Network Ports 12
Number of Expansion Slots 12
Expansion Slots Details QSFP28
Modular Expansion Yes
Ethernet Technology 100 Gigabit Ethernet
Network Technology 100GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 32 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.73 Inches
Width 17.4 Inches
Depth 16.0 Inches
Weight 17.65 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Switching capacity: 2.4 Tbps
  • MAC address: 212,992
  • IPv4 host table: 145,780
  • IPv6 host table: 145,780
  • IPv4 unicast routes: 606,977
  • IPv6 unicast routes: 630,784
  • Maximum number of Access Control List (ACL) entries ingress: IPv4 64,000, IPv6 32,764, MAC 64,000
  • Maximum number of Access Control List (ACL) entries egress: IPv4 8,192, IPv6 2,048, MAC 8,192
  • Maximum VLANs: 4,094
  • IGMP groups: 7,000
  • MLD groups: 7,000
  • IPv4 multicast routes: 7,000
  • IPv6 multicast routes: 7,000
