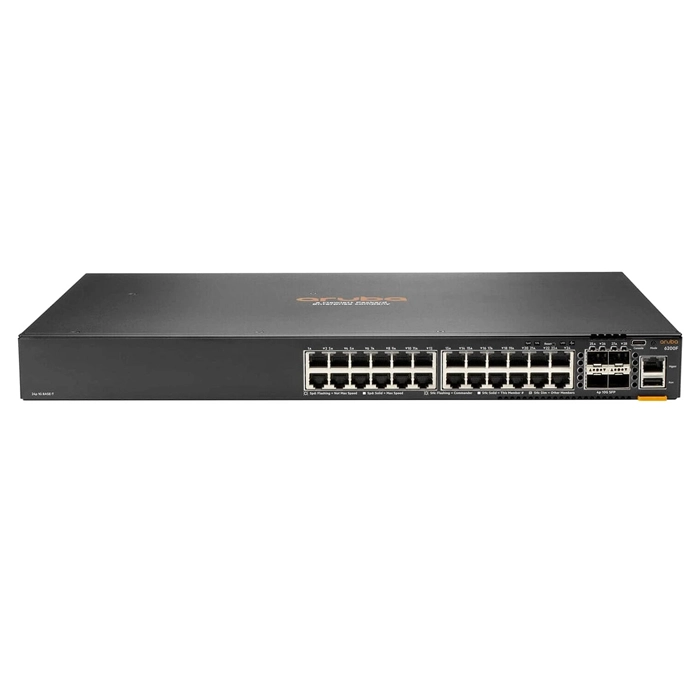

HP JL724B#B2E | Aruba CX 6200 Series 6200F-24G-4SFP+ 24 x 10/100/1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch

Part No JL724B#B2E
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$3,300.12
$3,102.11
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL724B#B2E | Aruba CX 6200 Series 6200F-24G-4SFP+ 24 x 10/100/1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
  • HP Aruba CX 6200F-24G-4SFP+ (JL724B#B2E) is worth a close look if you're setting up or upgrading a network for colocation and hosting environments packing dense server racks. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. On top of that, it has SFP+ expansion for uplinks. A built-in 16 (GB) of flash storage holds firmware images and config backups on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-and-side-to-back airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. When you order the HP Aruba CX 6200F-24G-4SFP+ through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
Product Line CX 6200
Model 6200F-24G-4SFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 16 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-and-side-to-back AirFlow
Height 1.73 Inches
Width 17.4 Inches
Depth 12.9 Inches
Weight 4.36 kg
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • CPU: Quad Core ARM Cortex A72 @ 1.8 GHz
  • Memory and Flash: 8 GB DDR4 16 GB eMMC
  • Packet Buffer: 8 MB Packet Buffer Memory
  • Model Switching Capacity: 128 Gbps
  • Model Throughput Capacity: Up to 95.2 Mpps
  • Average Latency:  1 Gbps: 2.28 μSec
  • (LIFO-64-bytes packets): 10 Gbps: 1.46 μSec
