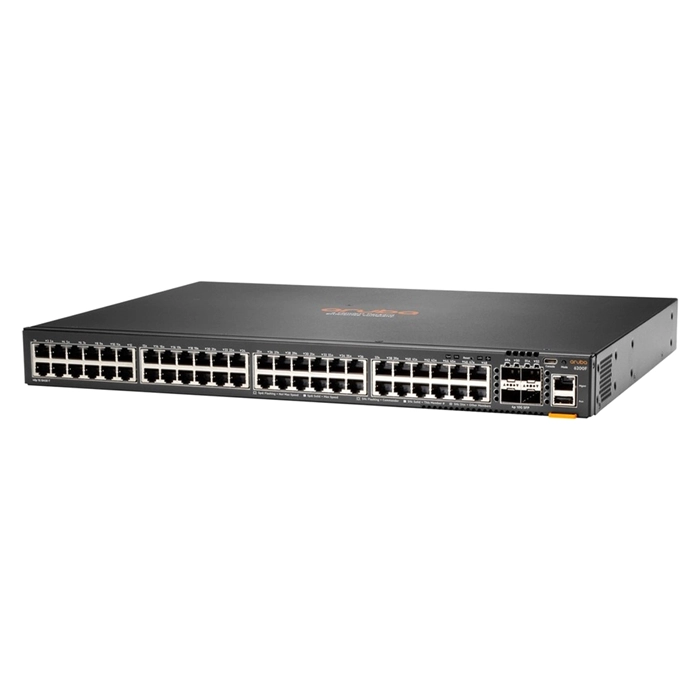

HP JL726A#ABA | Aruba CX 6200 Series 6200F-48G-4SFP+ 48 x 10/100/1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch

Part No JL726A#ABA
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$2,668.78
$2,508.65
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL726A#ABA | Aruba CX 6200 Series 6200F-48G-4SFP+ 48 x 10/100/1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
  • HP Aruba CX 6200F-48G-4SFP+ (JL726A#ABA) is the switch IT teams supporting data centers, virtualization hosts and server rooms that need high east-west throughput often turn to when they need something that just works. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. It rounds this out with SFP+ expansion for uplinks. Onboard flash storage of 16 (GB) keeps firmware and config backups local to the switch. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows front-and-side-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
  • UPC: 190017408743
Technical Documents:
General Information:
Product Line CX 6200
Model 6200F-48G-4SFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 52
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 16 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-and-side-to-back AirFlow
Height 1.73 Inches
Width 17.4 Inches
Depth 12.9 Inches
Weight 4.45 kg
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • CPU: Quad Core ARM Cortex A72 @ 1.8 GHz
  • Memory and Flash: 8 GB DDR4 16 GB eMMC
  • Packet Buffer: 8 MB Packet Buffer Memory
  • Model Switching Capacity: 176 Gbps
  • Model Throughput Capacity: Up to 130.9Mpps
  • Average Latency:  1 Gbps: 2.28 μSec
  • (LIFO-64-bytes packets): 10 Gbps: 1.46 μSec
