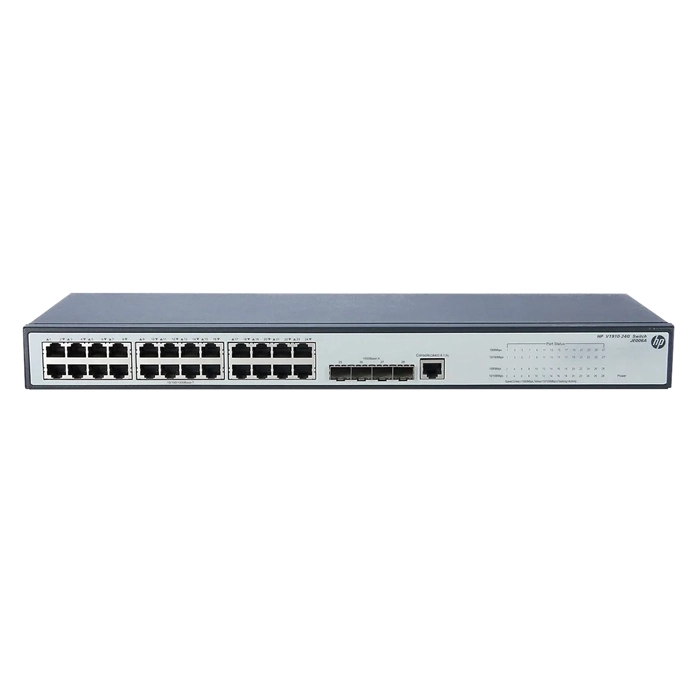

HP PJE006A#ABA | OfficeConnect 1910 Series 1910-24G 24 x RJ-45 10/100/1000Base-T and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No PJE006A#ABA
Manufacturer HP
Condition Refurbished
Availability Call For Price
Call For Price

Speak with our team for current pricing and availability.

Call Now +1 (888) 203 - 4073
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP PJE006A#ABA | OfficeConnect 1910 Series 1910-24G 24 x RJ-45 10/100/1000Base-T and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1910-24G (PJE006A#ABA) makes sense if you're shopping for data centers, virtualization hosts and server rooms that need high east-west throughput. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. It rounds this out with SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. On the compatibility side, it's desktop-friendly, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP OfficeConnect 1910-24G from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1910
Model 1910-24G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.7 Inches
Width 17.4 Inches
Depth 6.3 Inches
Weight 6.8 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • Throughput: up to 41.7 Mpps (64-byte packets)
  • Routing/Switching capacity: 56 Gb/s
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 8192 entries
