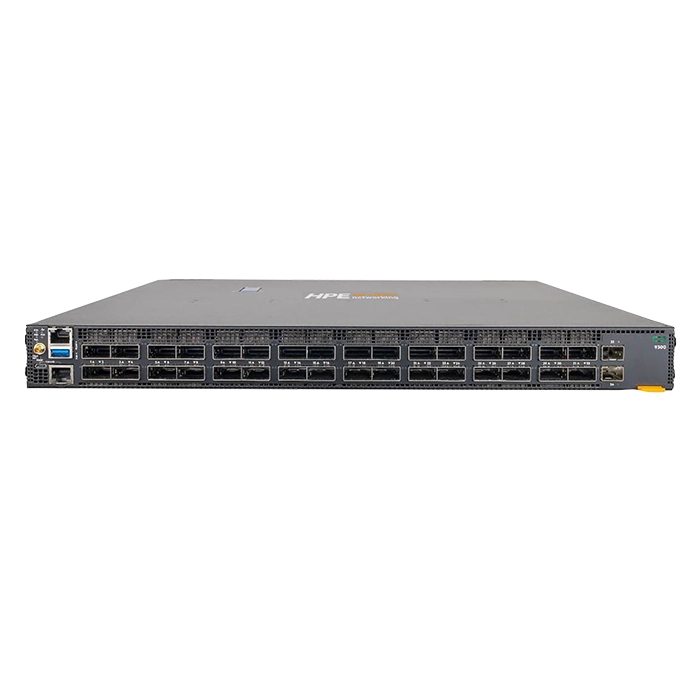

HP R9A29A#ACF | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Front-to-Back Airflow Data Center Switch
Description:
- HP R9A29A#ACF | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Front-to-Back Airflow Data Center Switch
- HP Aruba CX 9300‑32D (R9A29A#ACF) is the switch IT teams supporting network cores and aggregation layers feeding busy server racks often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 34 total network ports, laid out as 32x400 Gigabit EthernetQSFP-DD and 2x10 Gigabit EthernetSFP+, topping out at 400GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Beyond the base ports, there's SFP+,QSFP-DD expansion for uplinks. With 16 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-to-rear airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over SFP+,QSFP-DD covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
| Product Line | CX 9300 |
|---|---|
| Model | 9300‑32D |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 34 |
| Number of Expansion Slots | 34 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 MB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-to-Rear AirFlow |
| Height | 1.71 Inches |
| Width | 17.26 Inches |
| Depth | 23.23 Inches |
| Weight | 26.12 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
