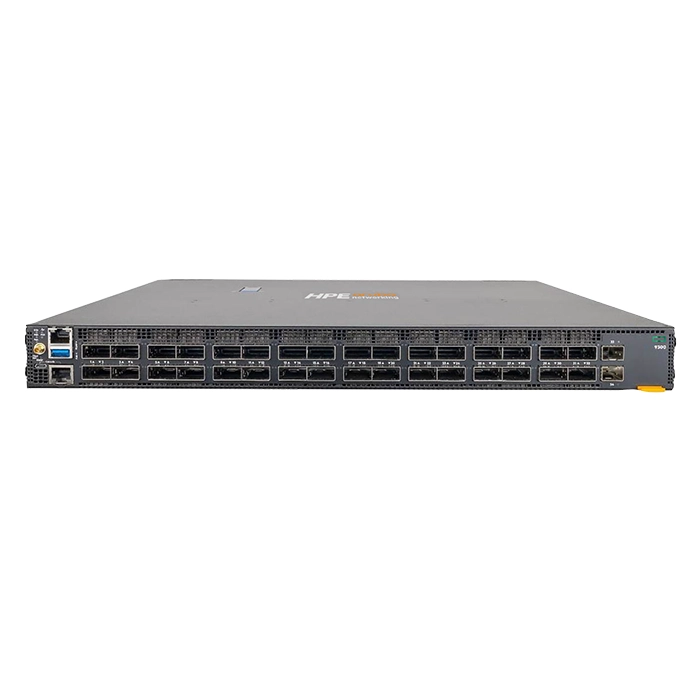

HP R9A29AR#ABA | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Front-to-Back Airflow Data Center Switch
Call For Price
Call Now
+1 (888) 203 - 4073
Speak with our team for current pricing and availability.
Description:
- HP R9A29AR#ABA | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Front-to-Back Airflow Data Center Switch
- HP Aruba CX 9300‑32D (R9A29AR#ABA) is the switch IT teams supporting media and rendering studios moving large files between workstations and storage often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 34 total network ports, laid out as 32x400 Gigabit EthernetQSFP-DD and 2x10 Gigabit EthernetSFP+, topping out at 400GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with SFP+,QSFP-DD expansion for uplinks. A built-in 16 (MB) of flash storage holds firmware images and config backups on the switch itself. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air front-to-rear airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over SFP+,QSFP-DD covers both copper and fiber runs. GotoDirect sources this HP Aruba CX switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | CX 9300 |
|---|---|
| Model | 9300‑32D |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 34 |
| Number of Expansion Slots | 34 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 MB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-to-Rear AirFlow |
| Height | 1.71 Inches |
| Width | 17.26 Inches |
| Depth | 23.23 Inches |
| Weight | 26.12 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
