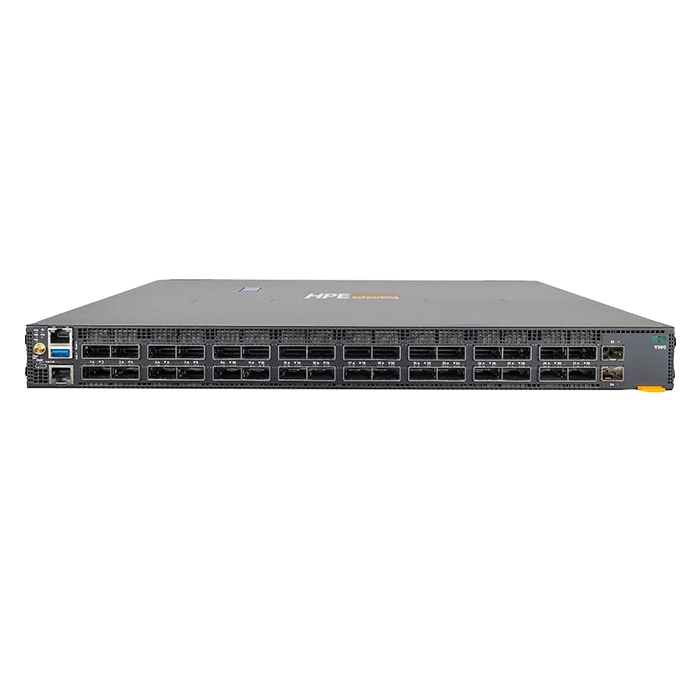

HP R9A30A#ACE | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Back-to-Front Airflow Data Center Switch

Part No R9A30A#ACE
Manufacturer HP
Condition Refurbished
Availability Call For Price
Call For Price

Speak with our team for current pricing and availability.

Call Now +1 (888) 203 - 4073
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP R9A30A#ACE | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Back-to-Front Airflow Data Center Switch
  • HP Aruba CX 9300‑32D (R9A30A#ACE) is worth a close look if you're setting up or upgrading a network for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 34 total network ports, laid out as 32x400 Gigabit EthernetQSFP-DD and 2x10 Gigabit EthernetSFP+, topping out at 400GbE per port. It rounds this out with SFP+,QSFP-DD expansion for uplinks. With 16 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air rear-to-front airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over SFP+,QSFP-DD covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
General Information:
Product Line CX 9300
Model 9300‑32D
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 32 x 400 Gigabit Ethernet QSFP-DD
  • 2 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 34
Number of Expansion Slots 34
Expansion Slots Details
  • SFP+
  • QSFP-DD
Modular Expansion Yes
Ethernet Technology
  • 10 Gigabit Ethernet
  • 400 Gigabit Ethernet
Network Technology
  • 10GBase-X
  • 400GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 16 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Rear-to-Front AirFlow
Height 1.71 Inches
Width 17.26 Inches
Depth 23.23 Inches
Weight 26.12 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • ICES-003
Miscellaneous:
Additional Features
  • Power supplies: 2 redundant power supplies, field-replaceable, hot-swappable
  • Fans: 6 redundant fans, field-replaceable, hot-swappable
  • CPU: x86
  • Memory, drive and flash: 128 GB m.2 SSD, 4 GB mSATA, 16 MB SPI Flash, 16 GB x2 SODIMM
  • Packet buffer: 132 MB
  • Switching capacity: 25.6 Tbps
  • IPv4 host table: 163,840
  • IPv6 host table: 81,920
  • IPv4 unicast routes: 65,536 (1,269,760 Unidimensional for Spine)
  • IPv6 unicast routes: 32,768 (624,640 Unidimensional for Spine)
  • MAC table size: 81,920 (32,768 Unidimensional for Spine)
  • IGMP groups: 8,192
  • MLD groups: 8,192
  • IPv4 multicast routes: 8,192
  • IPv6 multicast routes: 4,096
