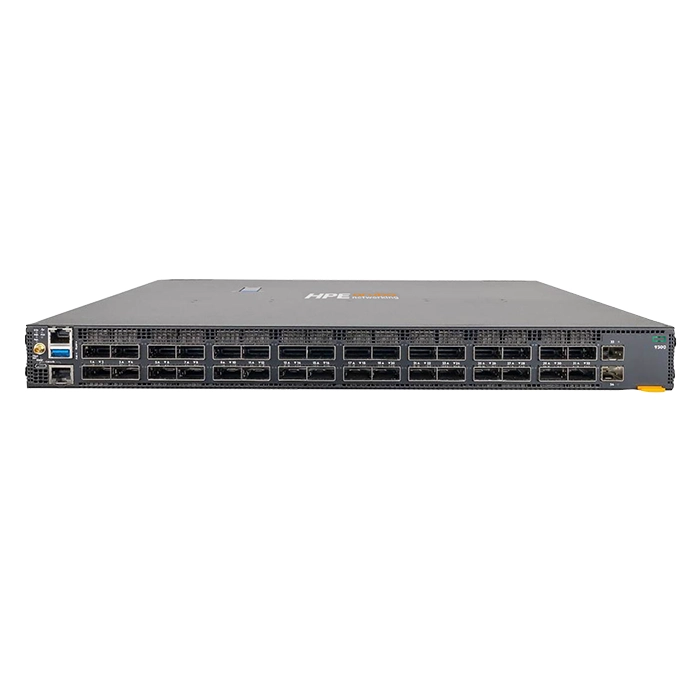

HP R9A30A#ARB | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Back-to-Front Airflow Data Center Switch
Description:
- HP R9A30A#ARB | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Back-to-Front Airflow Data Center Switch
- HP Aruba CX 9300‑32D (R9A30A#ARB) is worth a close look if you're setting up or upgrading a network for IT teams building out server, NAS and storage backbones. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 34 total network ports, laid out as 32x400 Gigabit EthernetQSFP-DD and 2x10 Gigabit EthernetSFP+, topping out at 400GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It rounds this out with SFP+,QSFP-DD expansion for uplinks. With 16 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and rear-to-front airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over SFP+,QSFP-DD covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 9300‑32D as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 9300 |
|---|---|
| Model | 9300‑32D |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 34 |
| Number of Expansion Slots | 34 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 MB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Rear-to-Front AirFlow |
| Height | 1.71 Inches |
| Width | 17.26 Inches |
| Depth | 23.23 Inches |
| Weight | 26.12 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
