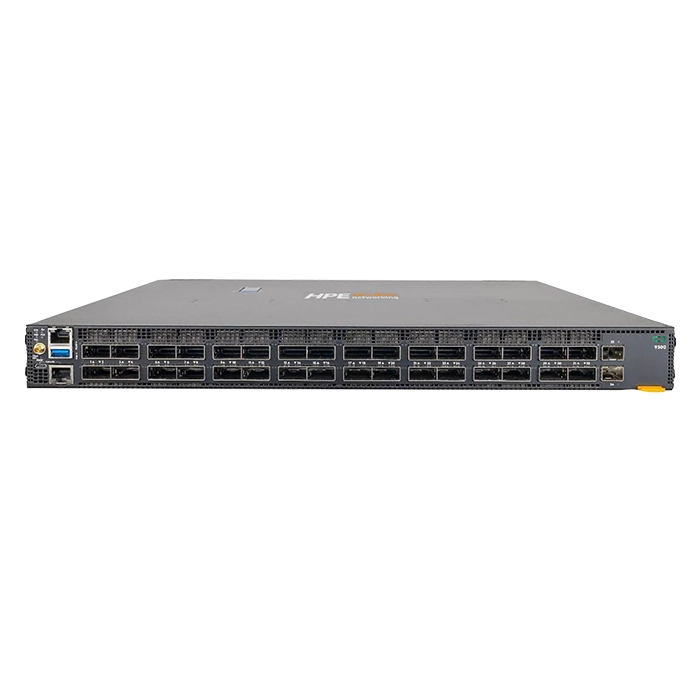

HP R9A30A#B2C | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Back-to-Front Airflow Data Center Switch
Description:
- HP R9A30A#B2C | Aruba CX 9300 Series 9300‑32D 32 x 400GbE QSFP-DD and 2 x 10GbE SFP+ Ports Layer 3 Managed Back-to-Front Airflow Data Center Switch
- HP Aruba CX 9300‑32D (R9A30A#B2C) is the switch IT teams supporting media and rendering studios moving large files between workstations and storage often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. On the port side, you get 34 total network ports, laid out as 32x400 Gigabit EthernetQSFP-DD and 2x10 Gigabit EthernetSFP+, topping out at 400GbE per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Beyond the base ports, there's SFP+,QSFP-DD expansion for uplinks. A built-in 16 (MB) of flash storage holds firmware images and config backups on the switch itself. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and rear-to-front airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over SFP+,QSFP-DD covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 9300‑32D as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 9300 |
|---|---|
| Model | 9300‑32D |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 34 |
| Number of Expansion Slots | 34 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 MB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Rear-to-Front AirFlow |
| Height | 1.71 Inches |
| Width | 17.26 Inches |
| Depth | 23.23 Inches |
| Weight | 26.12 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
