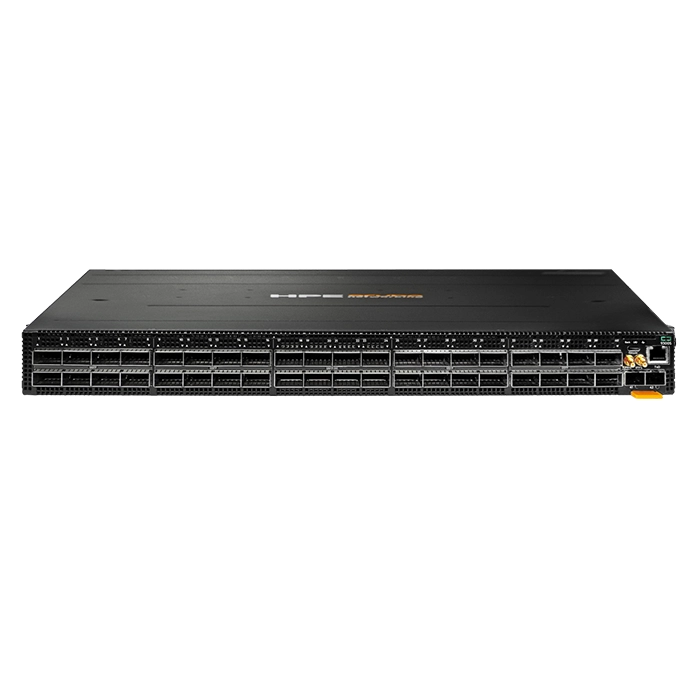

HP S0F84A#ABA | Aruba CX 9300 Series 9300S-32C8D 32 x 100GbE QSFP28 and 8 x 400GbE QSFPDD Ports Back-to-Front Layer 3 Managed Data Center Switch
$15,192.72
$14,433.08Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP S0F84A#ABA | Aruba CX 9300 Series 9300S-32C8D 32 x 100GbE QSFP28 and 8 x 400GbE QSFPDD Ports Back-to-Front Layer 3 Managed Data Center Switch
- HP Aruba CX 9300S-32C8D (S0F84A#ABA) is a solid pick for teams scaling out AI/ML training clusters that need fast east-west links that don't want to overthink the network layer. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. On the port side, you get 40 total network ports, laid out as 32x100 Gigabit EthernetQSFP28 and 8x400 Gigabit EthernetQSFP-DD, topping out at 400GbE per port. It also adds QSFP28,QSFP-DD expansion for uplinks. With 16 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows rear-to-front airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,QSFP-DD covers both copper and fiber runs. When you order the HP Aruba CX 9300S-32C8D through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 9300 |
|---|---|
| Model | 9300S-32C8D |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 40 |
| Number of Expansion Slots | 40 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 MB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Rear-to-Front AirFlow |
| Height | 1.71 Inches |
| Width | 17.4 Inches |
| Depth | 24 Inches |
| Weight | 30 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
