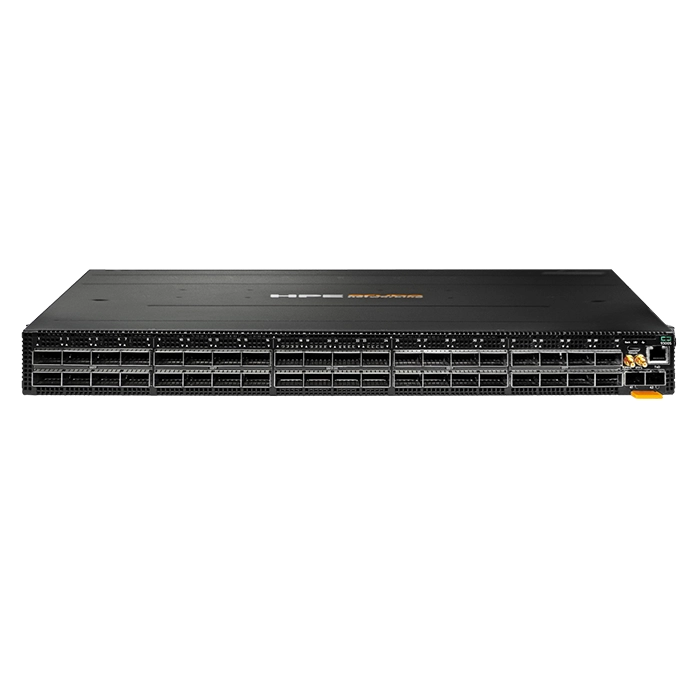

HP S0F84A | Aruba CX 9300 Series 9300S-32C8D 32 x 100GbE QSFP28 and 8 x 400GbE QSFPDD Ports Back-to-Front Layer 3 Managed Data Center Switch

Part No S0F84A
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$15,192.72
$14,433.08
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP S0F84A | Aruba CX 9300 Series 9300S-32C8D 32 x 100GbE QSFP28 and 8 x 400GbE QSFPDD Ports Back-to-Front Layer 3 Managed Data Center Switch
  • HP Aruba CX 9300S-32C8D (S0F84A) shows up a lot in shortlists for IT teams building out server, NAS and storage backbones, and for good reason. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. On the port side, you get 40 total network ports, laid out as 32x100 Gigabit EthernetQSFP28 and 8x400 Gigabit EthernetQSFP-DD, topping out at 400GbE per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. It rounds this out with QSFP28,QSFP-DD expansion for uplinks. Onboard flash storage of 16 (MB) keeps firmware and config backups local to the switch. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air rear-to-front airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,QSFP-DD covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 9300S-32C8D as genuine, warranty-covered hardware, with fast delivery across the US.
General Information:
Product Line CX 9300
Model 9300S-32C8D
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 32 x 100 Gigabit Ethernet QSFP28
  • 8 x 400 Gigabit Ethernet QSFP-DD
Total Number of Network Ports 40
Number of Expansion Slots 40
Expansion Slots Details
  • QSFP28
  • QSFP-DD
Modular Expansion Yes
Ethernet Technology
  • 100 Gigabit Ethernet
  • 400 Gigabit Ethernet
Network Technology
  • 100GBase-X
  • 400GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 16 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Rear-to-Front AirFlow
Height 1.71 Inches
Width 17.4 Inches
Depth 24 Inches
Weight 30 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • ICES-003
Miscellaneous:
Additional Features
  • Power supplies: 2 redundant power supplies, field-replaceable, hot-swappable
  • Fans: 6 redundant fans, field-replaceable, hot-swappable
  • CPU: x86
  • Memory, drive and flash: 128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM
  • Packet buffer: 82 MB
  • Switching capacity: 16 Tbps
  • IPv4 host table: 96K (262K for Spine)
  • IPv6 host table: 48K (131K for Spine)
  • IPv4 unicast routes: 725K for Spine
  • IPv6 unicast routes: 360K for Spine
  • MAC table size: 48K
  • IGMP groups: 8,196
  • MLD groups: 4,192
  • IPv4 multicast routes: 8,196
  • IPv6 multicast routes: 8,196
