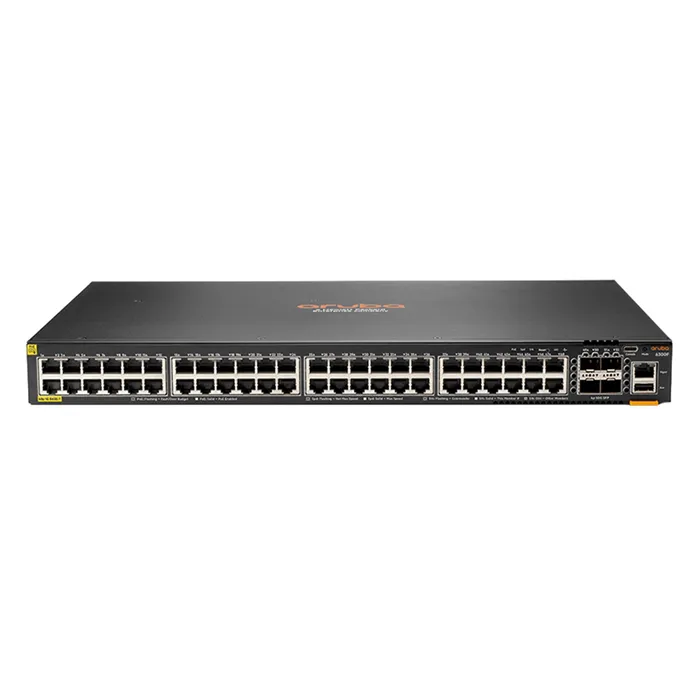

HP JL667A#ACC | Aruba CX 6300F Series 48 x 1000Base-T RJ-45 and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$5,619.40
$5,394.62Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL667A#ACC | Aruba CX 6300F Series 48 x 1000Base-T RJ-45 and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300F 48-port 1GbE and 4-port SFP56 Switch (JL667A#ACC) shows up a lot in shortlists for IT teams building out server, NAS and storage backbones, and for good reason. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. It rounds this out with SFP56 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP56 covers both copper and fiber runs. Buy the HP Aruba CX 6300F 48-port 1GbE and 4-port SFP56 Switch from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
- UPC: 656942886679
Technical Documents:
General Information:
| Product Line | CX 6300F |
|---|---|
| Model | 6300F 48-port 1GbE and 4-port SFP56 Switch |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 4.46 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
