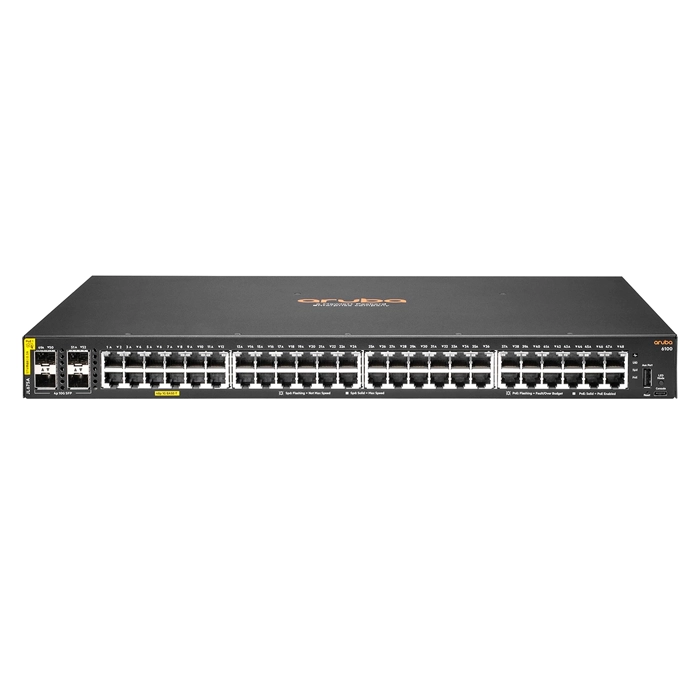

HP JL675A#B2E | Aruba CX 6100 Series 6100 48G Class4 PoE 4SFP+ 370W 48 x 1000Base-T RJ-45 Class 4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$2,855.46
$2,712.69Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL675A#B2E | Aruba CX 6100 Series 6100 48G Class4 PoE 4SFP+ 370W 48 x 1000Base-T RJ-45 Class 4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba CX 6100 48G Class4 PoE 4SFP+ 370W (JL675A#B2E) shows up a lot in shortlists for campus networks and multi-floor offices with dense wireless AP and VoIP deployments, and for good reason. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. It brings 52 total network ports, laid out as 48xGigabit EthernetRJ-45,Class4 PoE and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It also adds SFP+ expansion for uplinks. A built-in 16 (GB) of flash storage holds firmware images and config backups on the switch itself. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows side-to-side airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. Buy the HP Aruba CX 6100 48G Class4 PoE 4SFP+ 370W from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
- UPC: 190017348179
Technical Documents:
General Information:
| Product Line | CX 6100 |
|---|---|
| Model | 6100 48G Class4 PoE 4SFP+ 370W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Side-to-Side AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.0 Inches |
| Weight | 5.02 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
