Image may differ from original

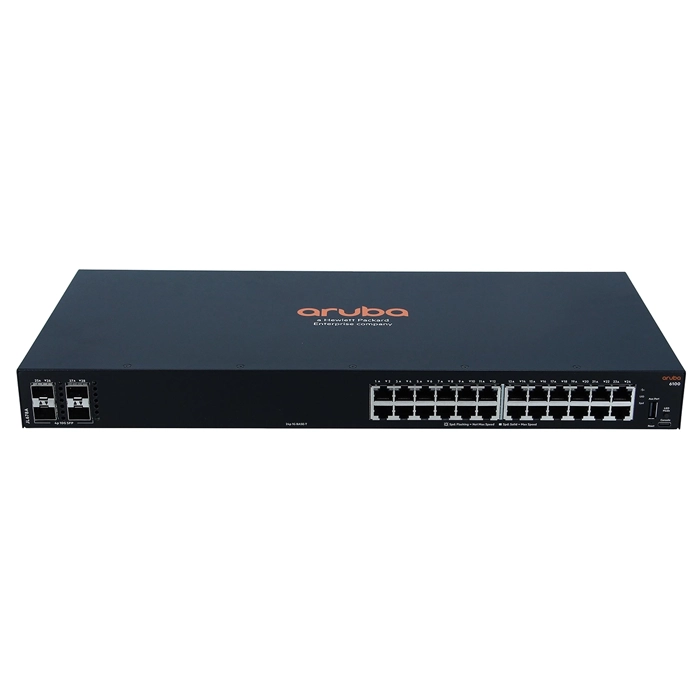

HP JL678A#B2B | Aruba CX 6100 Series 6100 24G 4SFP+ 24 x 1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$1,715.22
$1,543.70Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL678A#B2B | Aruba CX 6100 Series 6100 24G 4SFP+ 24 x 1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba CX 6100 24G 4SFP+ (JL678A#B2B) shows up a lot in shortlists for data centers, virtualization hosts and server rooms that need high east-west throughput, and for good reason. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. It rounds this out with SFP+ expansion for uplinks. With 16 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses side-to-side airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. Buy the HP Aruba CX 6100 24G 4SFP+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
| Product Line | CX 6100 |
|---|---|
| Model | 6100 24G 4SFP+ |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Side-to-Side AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 7.92 Inches |
| Weight | 2.62 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
