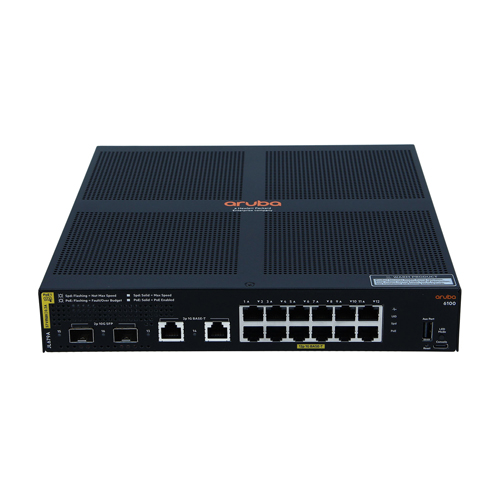

Image may differ from original
HP JL679A#B2E | Aruba CX 6100 Series 6100 12G Class4 PoE 2G/2SFP+ 139W 12 x 1000Base-T RJ-45 Class 4 PoE and 2 x 10GbE SFP+ and 2 x 1GbE RJ-45 Ports Layer 3 Managed Gigabit Ethernet Network Switch
$1,655.83
$1,556.48Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL679A#B2E | Aruba CX 6100 Series 6100 12G Class4 PoE 2G/2SFP+ 139W 12 x 1000Base-T RJ-45 Class 4 PoE and 2 x 10GbE SFP+ and 2 x 1GbE RJ-45 Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba CX 6100 12G Class4 PoE 2G/2SFP+ 139W (JL679A#B2E) is the switch IT teams supporting small business networks that want PoE without enterprise-scale port counts often turn to when they need something that just works. Small offices, retail counters and branch sites with a handful of APs, cameras or VoIP phones are the sweet spot here - enough PoE to skip extra adapters without paying for enterprise scale. Port-wise, it offers 16 total network ports, laid out as 12xGigabit EthernetRJ-45,Class4 PoE and 2x10 Gigabit EthernetSFP+,Uplink and 2xGigabit EthernetRJ-45,Uplink, topping out at 10GbE per port. Built-in PoE power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It also adds SFP+ expansion for uplinks. Onboard flash storage of 16 (GB) keeps firmware and config backups local to the switch. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect sources this HP Aruba CX switch as a genuine, warranty-backed unit, with fast shipping across the US.
- UPC: 190017349145
Technical Documents:
General Information:
| Product Line | CX 6100 |
|---|---|
| Model | 6100 12G Class4 PoE 2G/2SFP+ 139W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 16 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.73 Inches |
| Width | 10.0 Inches |
| Depth | 10.04 Inches |
| Weight | 2.78 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
