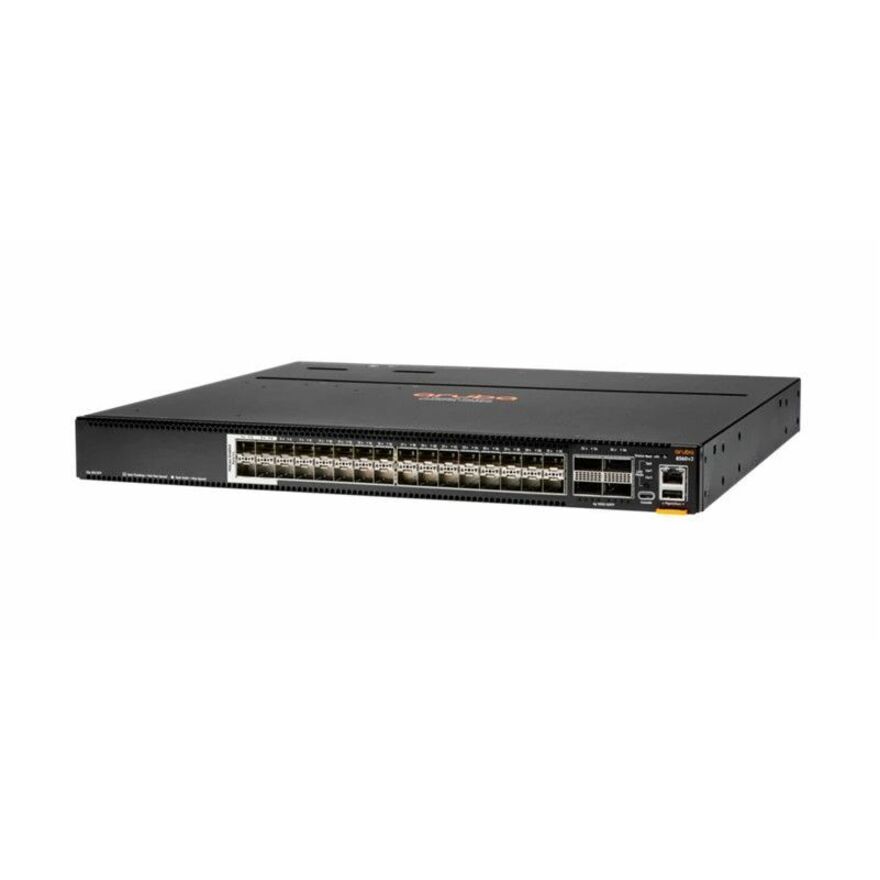

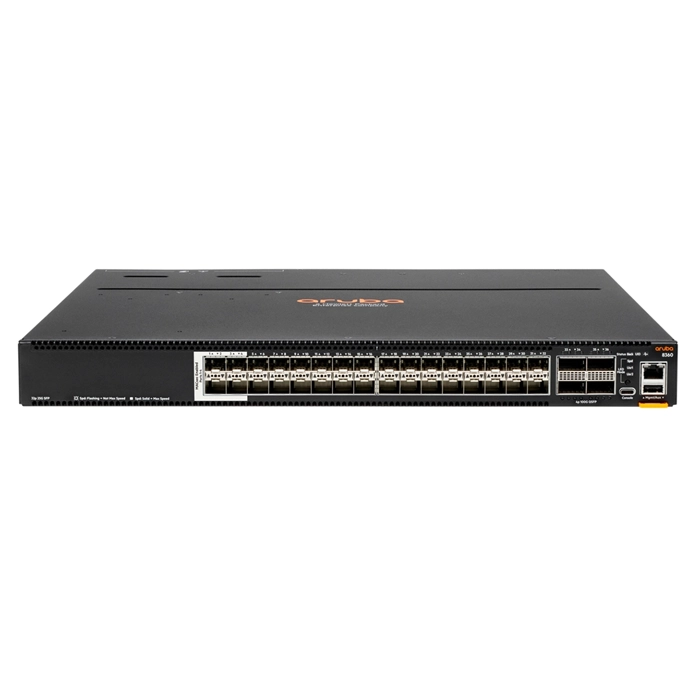

HP JL701C#ABA | Aruba CX 8360 v2 Series 8360-32Y4C v2 32 x 25GBase-X SFP28 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
$11,838.56
$10,536.32Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL701C#ABA | Aruba CX 8360 v2 Series 8360-32Y4C v2 32 x 25GBase-X SFP28 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
- HP Aruba CX 8360-32Y4C v2 (JL701C#ABA) is built to handle network cores and aggregation layers feeding busy server racks without drama. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 36 total network ports, laid out as 32x25 Gigabit EthernetSFP28 and 4x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It also adds QSFP28,SFP28 expansion for uplinks. With 32 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air rear-to-front airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. When you order the HP Aruba CX 8360-32Y4C v2 through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
| Product Line | CX 8360 v2 |
|---|---|
| Model | 8360-32Y4C v2 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 36 |
| Number of Expansion Slots | 36 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Rear-to-Front AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 16.0 Inches |
| Weight | 18.05 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
