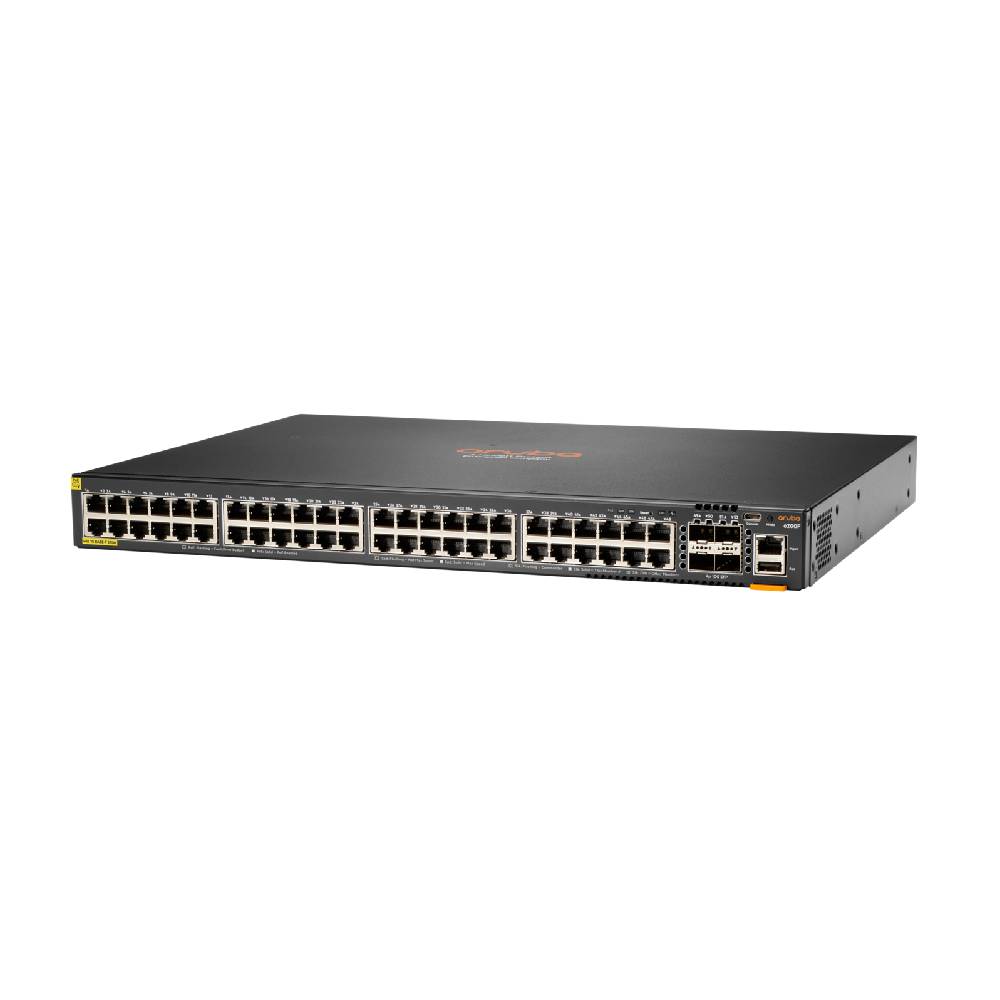

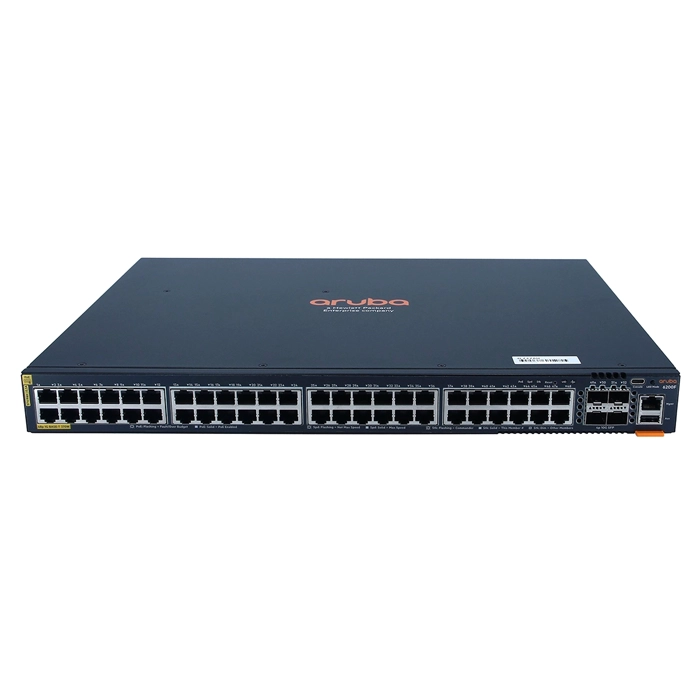

HP JL727A#B2E | Aruba CX 6200 Series 6200F-48G-Class4-PoE-4SFP+ (370W) 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
$3,577.73
$3,363.07Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL727A#B2E | Aruba CX 6200 Series 6200F-48G-Class4-PoE-4SFP+ (370W) 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
- HP Aruba CX 6200F-48G-Class4-PoE-4SFP+ (370W) (JL727A#B2E) is built to handle large offices consolidating dozens of PoE endpoints onto fewer switches without drama. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. On the port side, you get 52 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. On top of that, it has SFP+ expansion for uplinks. Onboard flash storage of 16 (GB) keeps firmware and config backups local to the switch. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-and-side-to-back airflow for straightforward rack cooling. GotoDirect sources this HP Aruba CX switch as a genuine, warranty-backed unit, with fast shipping across the US.
- UPC: 190017409184
Technical Documents:
General Information:
| Product Line | CX 6200 |
|---|---|
| Model | 6200F-48G-Class4-PoE-4SFP+ (370W) |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 5.05 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
