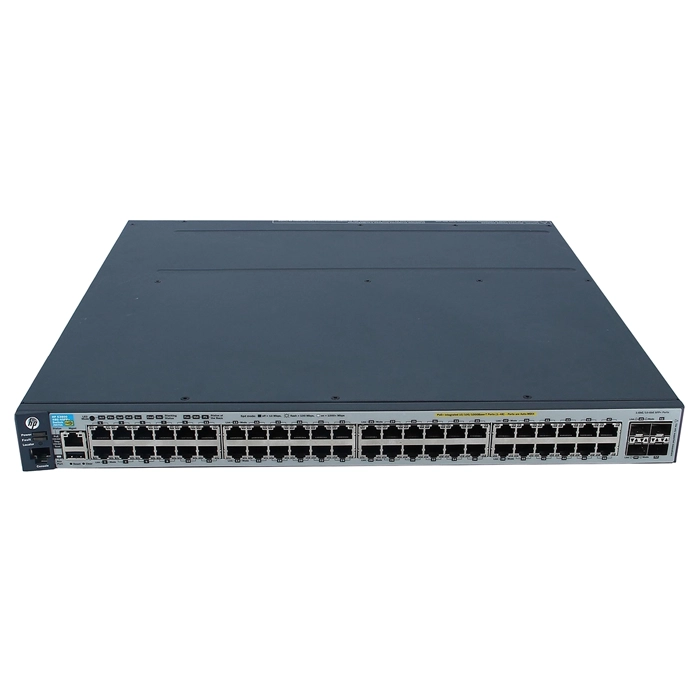

HP J9574AR | Aruba 3800 Series 3800-48G-PoE+-4SFP+ 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$963.31
$905.51Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP J9574AR | Aruba 3800 Series 3800-48G-PoE+-4SFP+ 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba 3800-48G-PoE+-4SFP+ (J9574AR) is a solid pick for growing offices that need to power dozens of endpoints straight from the switch that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 53 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink and 1xStacking Module, topping out at 10GbE per port. It rounds this out with SFP+,Stacking Module expansion for uplinks. A built-in 4 (GB) of flash storage holds firmware images and config backups on the switch itself. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+,Stacking Module covers both copper and fiber runs. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
- UPC: 886112599683
Technical Documents:
General Information:
| Product Line | 3800 |
|---|---|
| Model | 3800-48G-PoE+-4SFP+ |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 53 |
| Number of Expansion Slots | 5 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Console Management Port | Yes |
| Flash Storage Memory | 4 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.7 Inches |
| Width | 17.43 Inches |
| Depth | 18.4 Inches |
| Weight | 16.84 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
