Image may differ from original

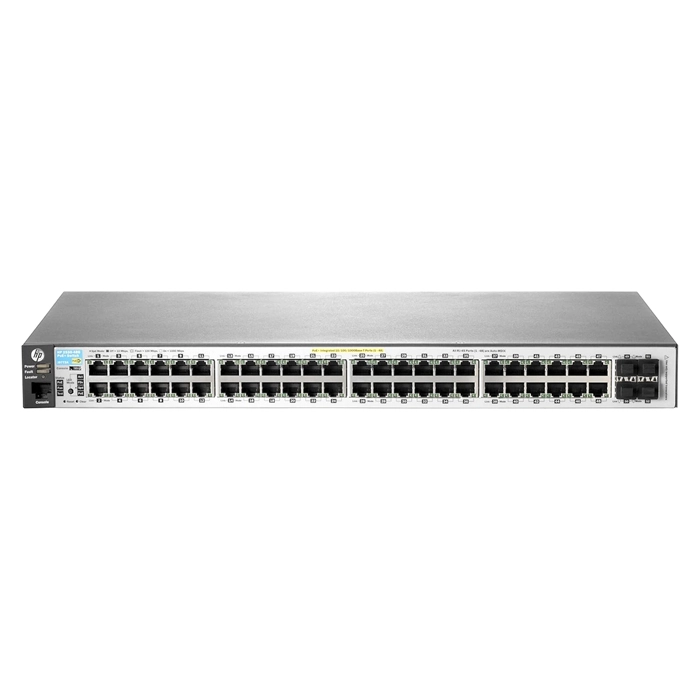

HP J9772A#ABA | Aruba 2530 Series 2530-48G-PoE+ 48 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch
$2,871.48
$2,699.19Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP J9772A#ABA | Aruba 2530 Series 2530-48G-PoE+ 48 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch
- HP Aruba 2530-48G-PoE+ (J9772A#ABA) is a strong, no-nonsense fit for growing offices that need to power dozens of endpoints straight from the switch. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Port-wise, it offers 52 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. On top of that, it has SFP (mini-GBIC) expansion for uplinks. Firmware and configuration live in onboard non-volatile memory, surviving reboots and power cycles. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
- UPC: 641753359009
Technical Documents:
General Information:
| Product Line | 2530 |
|---|---|
| Model | 2530-48G-PoE+ |
| Product Type | Layer 2 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP (mini-GBIC) |
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 2 |
| USB Port | Yes |
| Console Management Port | Yes |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.75 Inches |
| Width | 17.44 Inches |
| Depth | 13.00 Inches |
| Weight | 10.4 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
