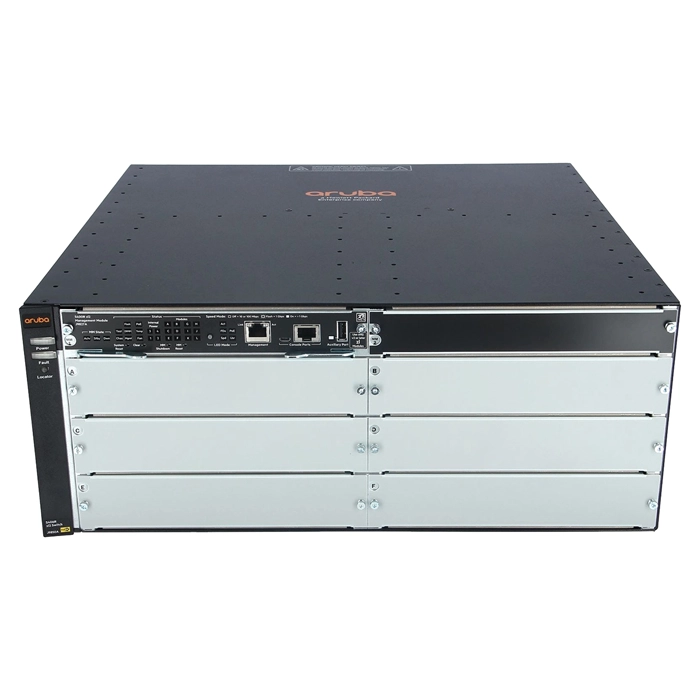

HP J9821-61001 | 5406r Zl2 Switch Chassis

Here are the technical specifications for the HP 5406r Zl2 Switch chassis:

1. Dimensions: 17.42 x 17.42 x 12.13 in
2. Weight: 29.54 lbs
3. Power consumption: 350 W (maximum)
4. Power supply: 2 hot-swappable power supplies (included)
5. Fans: 4 hot-swappable fans (included)
6. Switching capacity: 1.44 Tbps
7. Forwarding rate: 1.08 Bpps
8. Number of ports: up to 144 10/100/1000, 288 1 GbE, 288 10 GbE, or a combination of these
9. Management interface: 1 RJ-45 serial console port, 1 RJ-45 out-of-band management port, 1 USB Type-A port, 1 USB Type-B port
10. Supported protocols: OSPF, BGP, IS-IS, RIP, IGMP, PIM, DVMRP, VRRP, MSDP, ARP, DHCP, ICMP, TCP, UDP, Telnet, SSH, SNMP, RMON, LLDP, LLDP-MED, sFlow, CDP
11. Operating temperature: 32°F to 131°F (0°C to 55°C)
12. Operating humidity: 15% to 95% (noncondensing)

Helpful notes:
1. The HP 5406r Zl2 Switch chassis supports up to 144 PoE+ ports with the addition of a PoE+ module.
2. The chassis can be stacked with up to 8 other HP 5400R or 3800 switches for increased scalability.
3. The switch supports redundant management modules for added reliability and redundancy.
