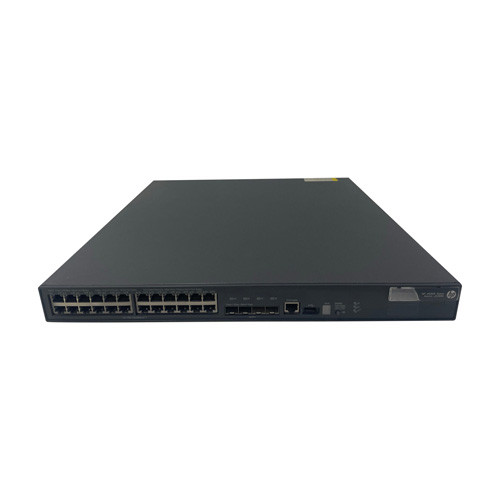

HP JC099A#ABA | FlexFabric 5800 Series 5800-24G-PoE+ 24 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$601.66
$565.56Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JC099A#ABA | FlexFabric 5800 Series 5800-24G-PoE+ 24 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP FlexFabric 5800-24G-PoE+ (JC099A#ABA) is the switch IT teams supporting IT teams standardizing wiring closets across a multi-building campus often turn to when they need something that just works. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 29 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+ and 1xExpansion Module, topping out at 10GbE per port. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. On top of that, it has SFP+,Expansion Module expansion for uplinks. With 512 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+,Expansion Module covers both copper and fiber runs. GotoDirect ships this HP FlexFabric switch as genuine stock with full warranty backing and fast delivery nationwide.
- UPC: 885631164990
Technical Documents:
General Information:
| Product Line | FlexFabric 5800 |
|---|---|
| Model | 5800-24G-PoE+ |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 29 |
| Number of Expansion Slots | 5 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Console Management Port | Yes |
| Flash Storage Memory | 512 MB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.71 Inches |
| Width | 17.3 Inches |
| Depth | 16.8 Inches |
| Weight | 17.64 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
