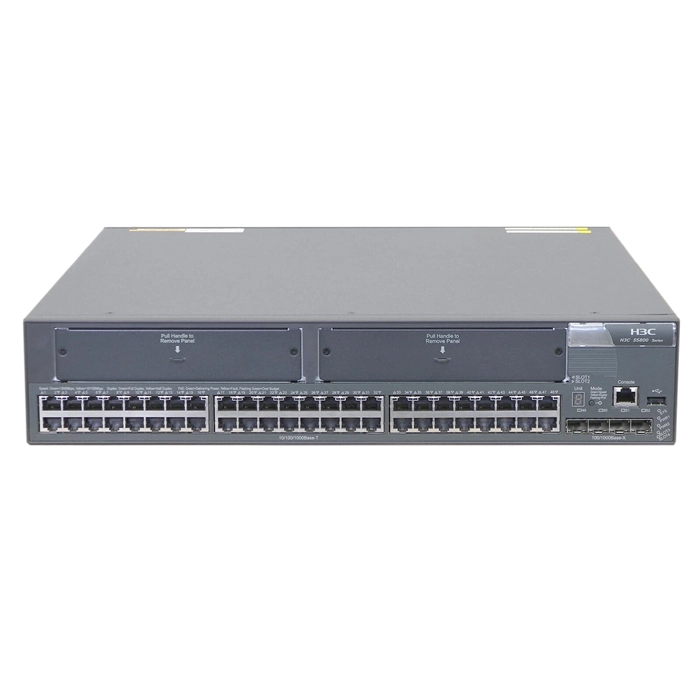

Image may differ from original
HP JC101A#ABA | FlexFabric 5800 Series 5800-48G-PoE+ 2-Slots 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 1GbE Fixed SFP Ports and 2 x Extended Module Slot and 1 x Open Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$2,070.87
$1,946.62Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JC101A#ABA | FlexFabric 5800 Series 5800-48G-PoE+ 2-Slots 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 1GbE Fixed SFP Ports and 2 x Extended Module Slot and 1 x Open Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP FlexFabric 5800-48G-PoE+ 2-Slots (JC101A#ABA) is a strong, no-nonsense fit for large offices consolidating dozens of PoE endpoints onto fewer switches. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 55 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4xGigabit EthernetSFP (mini-GBIC) and 3xExpansion Module, topping out at Gigabit (1GbE) per port. Beyond the base ports, there's SFP (mini-GBIC),Expansion Module expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. For installation, it's rack-mount, in a 2U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC),Expansion Module covers both copper and fiber runs. GotoDirect ships this HP FlexFabric switch as genuine stock with full warranty backing and fast delivery nationwide.
- UPC: 885631165348
Technical Documents:
General Information:
| Product Line | FlexFabric 5800 |
|---|---|
| Model | 5800-48G-PoE+ 2-Slots |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 55 |
| Number of Expansion Slots | 7 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Console Management Port | Yes |
| Flash Storage Memory | 512 MB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 2U |
| Height | 3.39 Inches |
| Width | 17.32 Inches |
| Depth | 18.31 Inches |
| Weight | 39.7 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
