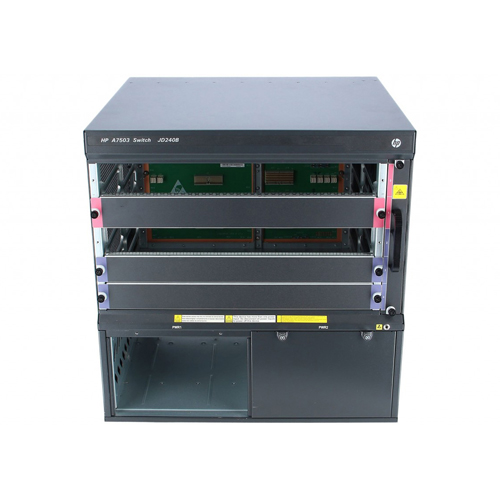

JD240B - HP 7503 Switch Chassis

Technical Specifications:
1. Switching capacity: 2.88 Tbps
2. Forwarding rate: 2.14 Bpps
3. Number of slots: 3
4. Maximum VLANs: 4096
5. Maximum MAC addresses: 128,000
6. Maximum IPv4 routes: 128,000
7. Maximum IPv6 routes: 64,000
8. Power supply: 2+2 redundant hot-swappable
9. Maximum power consumption: 5,600W
10. Dimensions (H x W x D): 17.3 x 17.4 x 22.4 in
11. Weight: 88.4 lbs
12. Operating temperature range: 32°F to 113°F

Helpful Notes:
1. The HP 7503 switch chassis is designed for high-performance, high-availability enterprise data center networks.
2. The switch supports a wide range of Layer 2 and Layer 3 protocols, including IPv6, OSPF, and BGP.
3. The modular design of the switch allows for easy scalability and flexibility in network design.
