Image may differ from original

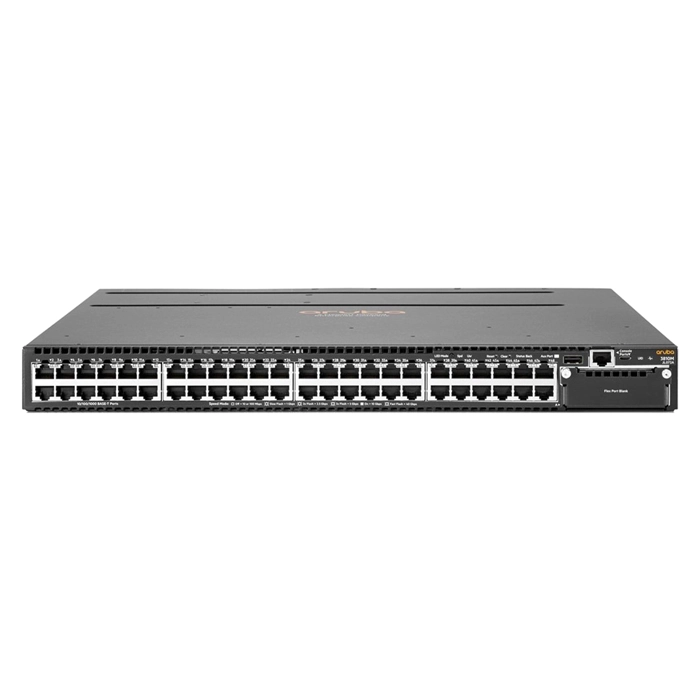

HP JL072A | Aruba 3810 Series 3810M 48G 1‑slot 48 x 10/100/1000Base-T RJ-45 and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$262.46
$246.71Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL072A | Aruba 3810 Series 3810M 48G 1‑slot 48 x 10/100/1000Base-T RJ-45 and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba 3810M 48G 1‑slot (JL072A) is a strong, no-nonsense fit for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 48 total network ports, laid out as 48xGigabit EthernetRJ-45 and 1xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. It rounds this out with Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. A built-in 1 (GB) of flash storage holds firmware images and config backups on the switch itself. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair media over Stacking Module,Expansion Module covers both copper and fiber runs. GotoDirect stocks the HP Aruba 3810M 48G 1‑slot as genuine, warranty-covered hardware, with fast delivery across the US.
- UPC: 888793596586
Technical Documents:
General Information:
| Product Line | 3810 |
|---|---|
| Model | 3810M 48G 1‑slot |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 48 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Media Standard | Twisted Pair |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Stacking Port | Yes |
| Flash Storage Memory | 1 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 16.98 Inches |
| Weight | 13.20 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
