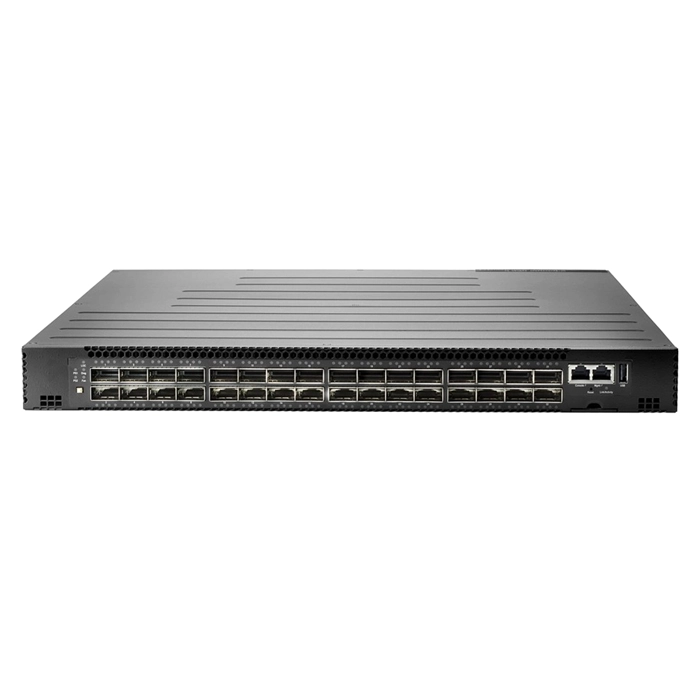

HP JL279-61001 | Altoline 6960 Series 6960 32QSFP28 32 x 100GbE QSFP28 Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
$2,229.59
$2,118.11Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL279-61001 | Altoline 6960 Series 6960 32QSFP28 32 x 100GbE QSFP28 Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
- HP Altoline 6960 32QSFP28 (JL279-61001) is a solid pick for network cores and aggregation layers feeding busy server racks that don't want to overthink the network layer. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 32 total network ports, laid out as 32x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Beyond the base ports, there's QSFP28 expansion for uplinks. With 8 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-to-rear airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28 covers both copper and fiber runs. GotoDirect sources this HP Altoline switch as a genuine, warranty-backed unit, with fast shipping across the US.
- UPC: 100415911400
General Information:
| Product Line | Altoline 6960 |
|---|---|
| Model | 6960 32QSFP28 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots | 32 x 100 Gigabit Ethernet QSFP28 |
|---|---|
| Total Number of Network Ports | 32 |
| Number of Expansion Slots | 32 |
| Expansion Slots Details | QSFP28 |
| Modular Expansion | Yes |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-X |
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 8 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-to-Rear AirFlow |
| Height | 1.73 Inches |
| Width | 17.26 Inches |
| Depth | 20.28 Inches |
| Weight | 8.4 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
