Image may differ from original

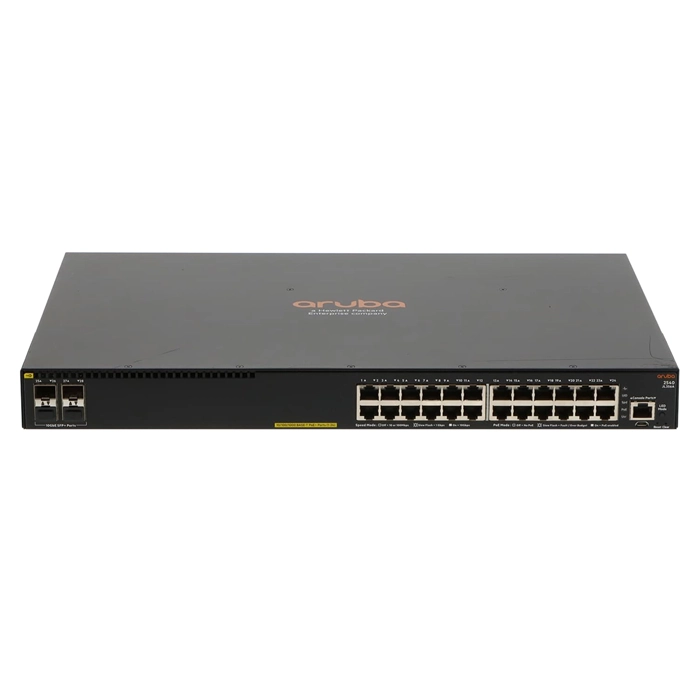

HP JL356ACM#ABA | Aruba 2540 Series 2540 24G PoE+ 4SFP+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP+ Ports Layer 2 Managed Gigabit Ethernet Network Switch
$612.01
$581.41Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL356ACM#ABA | Aruba 2540 Series 2540 24G PoE+ 4SFP+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP+ Ports Layer 2 Managed Gigabit Ethernet Network Switch
- HP Aruba 2540 24G PoE+ 4SFP+ (JL356ACM#ABA) is built to handle growing offices that need to power dozens of endpoints straight from the switch without drama. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Port-wise, it offers 28 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. It rounds this out with SFP+ expansion for uplinks. Firmware and configuration live in onboard non-volatile memory, surviving reboots and power cycles. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses side-to-side airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. When you order the HP Aruba 2540 24G PoE+ 4SFP+ through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
| Product Line | 2540 |
|---|---|
| Model | 2540 24G PoE+ 4SFP+ |
| Product Type | Layer 2 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 2 |
| USB Port | Yes |
| Console Management Port | Yes |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Side-to-Side AirFlow |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 11.98 Inches |
| Weight | 8.6 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
