Image may differ from original

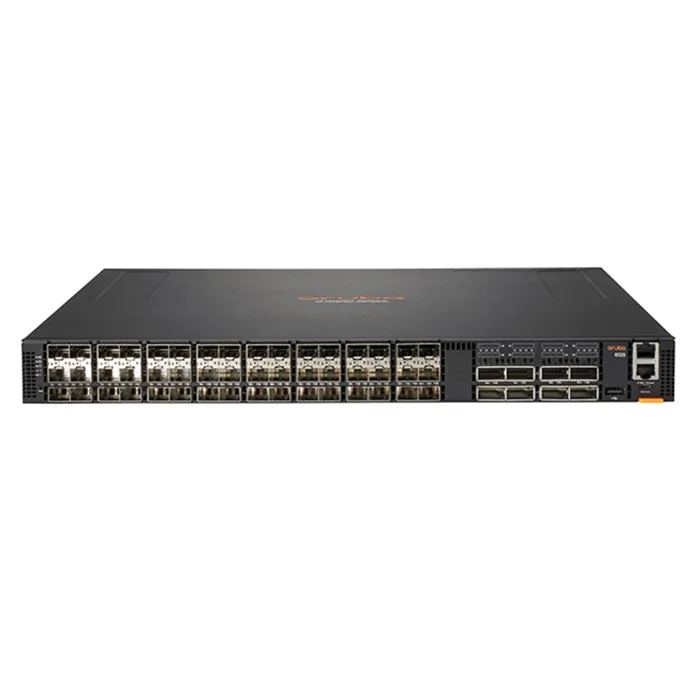

HP JL625A#ABA | Aruba CX 8325 Series 8325-48Y8C 48 x 25GbE SFP28 and 8 x 100GbE QSFP28 Layer 3 Managed Back-to-Front Airflow Network Switch
$9,822.43
$9,233.08Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL625A#ABA | Aruba CX 8325 Series 8325-48Y8C 48 x 25GbE SFP28 and 8 x 100GbE QSFP28 Layer 3 Managed Back-to-Front Airflow Network Switch
- HP Aruba CX 8325-48Y8C (JL625A#ABA) is a strong, no-nonsense fit for data centers, virtualization hosts and server rooms that need high east-west throughput. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 56 total network ports, laid out as 48x25 Gigabit EthernetSFP28 and 8x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. On top of that, it has QSFP28,SFP28 expansion for uplinks. A built-in 8 (GB) of flash storage holds firmware images and config backups on the switch itself. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and rear-to-front airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. GotoDirect sources this HP Aruba CX switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | CX 8325 |
|---|---|
| Model | 8325-48Y8C |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 56 |
| Number of Expansion Slots | 56 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 8 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Rear-to-Front AirFlow |
| Height | 1.71 Inches |
| Width | 17.26 Inches |
| Depth | 21.1 Inches |
| Weight | 10 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
